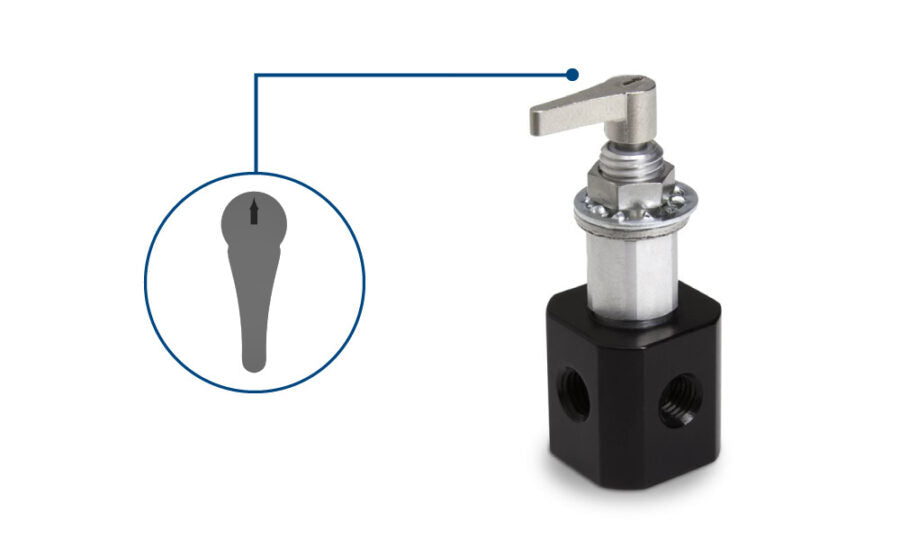

Manual Valve, PTFE/CTFE Distribution Flow Path, 3-ports, HVP (3-5)

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 86787

Manual Valve, PTFE/CTFE Distribution Flow Path, 3-ports, HVP (3-5)

Valve Model: 3-5
Valve Model Description: Distribution Flow Path 3-ports
Fluid Path: PTFE/CTFE
Valve Size: HVP
Nominal Port Diameter: 0.059 inch (1.5 mm)
Valve Outer Body Dimension: 0.75 inch (19.1 mm)
Housing Material: Aluminum
Total Dead Volume: 16.8 µL
Actuated: Manual
Break Away Torque: 15 oz-in (105.9 mNm)
Panel Mounting: Yes
Panel Thickness: 0.150 inch (3.8 mm)
Thread Depth: 0.223 inch (5.7 mm)
Threaded Connection: ¼-28
Operating Temp High: 38 °C (100 °F)
Operating Temp Low: -12 °C (10 °F)
Operating Pressure: 0 to 100 psig (0 to 6.9 bar)
Storage Temp High: 38 °C (100 °F)
Storage Temp Low: -18 °C (0 °F)
