Hamilton Valve HVX 3-2

Please Login or Register to see price.
SKU: 86904

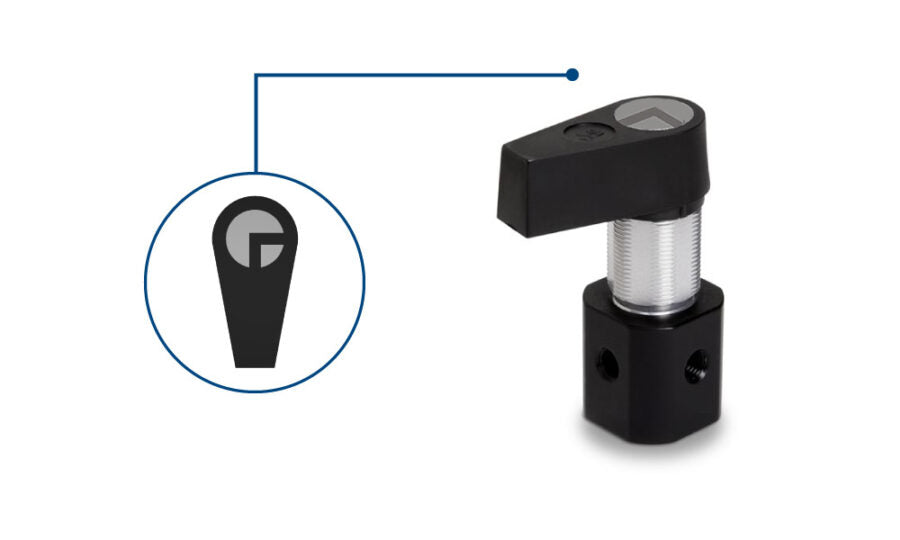

Hamilton Valve HVX 3-2

Hamilton (HV) Plug Valves provide an economical and flexible method of custom-building a fluid flow control system, from a simple on/off valve to a more complex multi-valve arrangement, using a combination of loop and distribution valves. The small valve body with its chemically inert PTFE/CTFE flow path is ideally suited for low pressure (100 psi) applications. All HV Plug Valves allow you to select and interchange a wide variety of fittings, adapters and tubing, including male and female luers, FEP tubing assemblies, and adapters which thread directly into the valve providing an endless variety of valve configurations for any flow application.

Valve Model 3-2
Valve Model Description 90° Flow Path 3-ports
Fluid Path PTFE/CTFE
Valve Size HVX
Nominal Port Diameter 0.118 inch (3 mm)
Valve Outer Body Dimension 1 inch (25.4 mm)
Housing Material Aluminum
Total Dead Volume 105.2 µL
Actuated Manual
Break Away Torque 65 in oz. (455 mNm)
Panel Mounting Yes
Panel Thickness 0.625 inch (15.9 mm)
Thread Depth 0.219 inch (5.6 mm)
Threaded Connection ¼-28
Operating Temp High 38 °C (100 °F)
Operating Temp Low -12 °C (10 °F)
Operating Pressure 0 to 100 psig (0 to 6.9 bar)
Storage Temp High 38 °C (100 °F)
Storage Temp Low -18 °C (0 °F)
