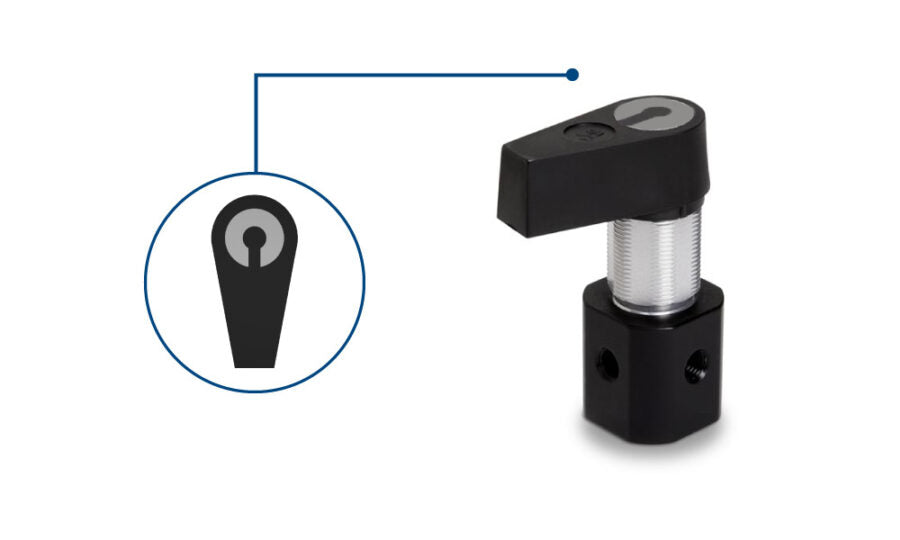

Manual Valve, PTFE/CTFE Distribution Flow Path, 4-ports, HVX (4-5)
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 86913
Valve Model: 4-5
Valve Model Description: Distribution Flow Path 4-ports
Fluid Path: PTFE/CTFE
Valve Size: HVX
Nominal Port Diameter: 0.118 inch (3 mm)
Valve Outer Body Dimension: 1 inch (25.4 mm)
Housing Material: Aluminum
Total Dead Volume: 108.8 µL
Actuated: Manual
Break Away Torque: 65 in oz. (455 mNm)
Panel Mounting: Yes
Panel Thickness: 0.625 inch (15.9 mm)
Thread Depth: 0.219 inch (5.6 mm)
Threaded Connection: ¼-28
Operating Temp High: 38 °C (100 °F)
Operating Temp Low: -12 °C (10 °F)
Operating Pressure: 0 to 100 psig (0 to 6.9 bar)
Storage Temp High: 38 °C (100 °F)
Storage Temp Low: -18 °C (0 °F)
