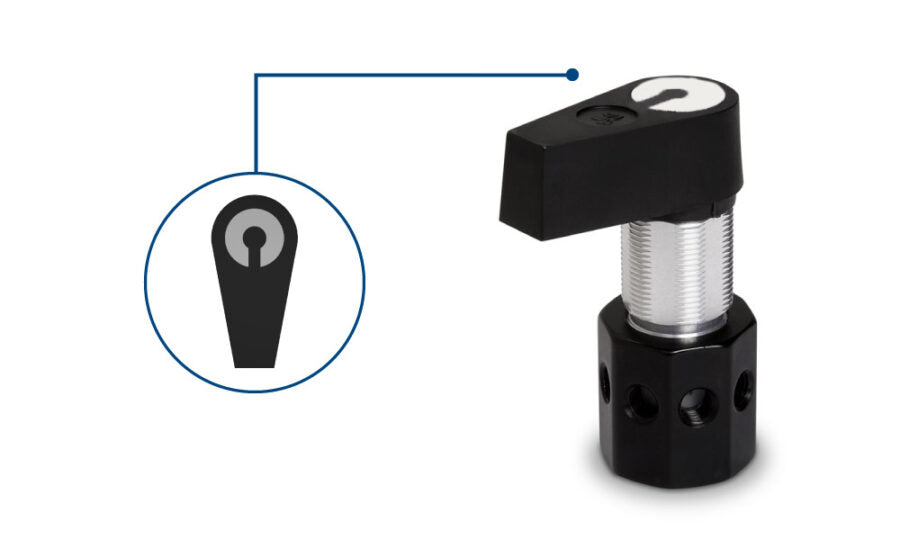

Hamilton (HV) Plug Valves provide an economical and flexible method of custom-building a fluid flow control system, from a simple on/off valve to a more complex multi-valve arrangement, using a combination of loop and distribution valves. The small valve body with its chemically inert PTFE/CTFE flow path is ideally suited for low pressure (100 psi) applications. All HV Plug Valves allow you to select and interchange a wide variety of fittings, adapters and tubing, including male and female luers, FEP tubing assemblies, and adapters which thread directly into the valve providing an endless variety of valve configurations for any flow application.
|Valve Model Description||Distribution Flow Path 8-ports|
|Nominal Port Diameter||0.059 inch (1.5 mm)|
|Valve Outer Body Dimension||1 inch (25.4 mm)|
|Total Dead Volume||27.4 µL|
|Break Away Torque||65 in oz. (455 mNm)|
|Panel Thickness||0.625 inch (15.9 mm)|
|Thread Depth||0.219 inch (5.6 mm)|
|Operating Temp High||38 °C (100 °F)|
|Operating Temp Low||-12 °C (10 °F)|
|Operating Pressure||0 to 100 psig (0 to 6.9 bar)|
|Storage Temp High||38 °C (100 °F)|
|Storage Temp Low||-18 °C (0 °F)|
