Hamilton Loop Valve HVLX 8-7 Sampling

Please Login or Register to see price.
SKU: 86919

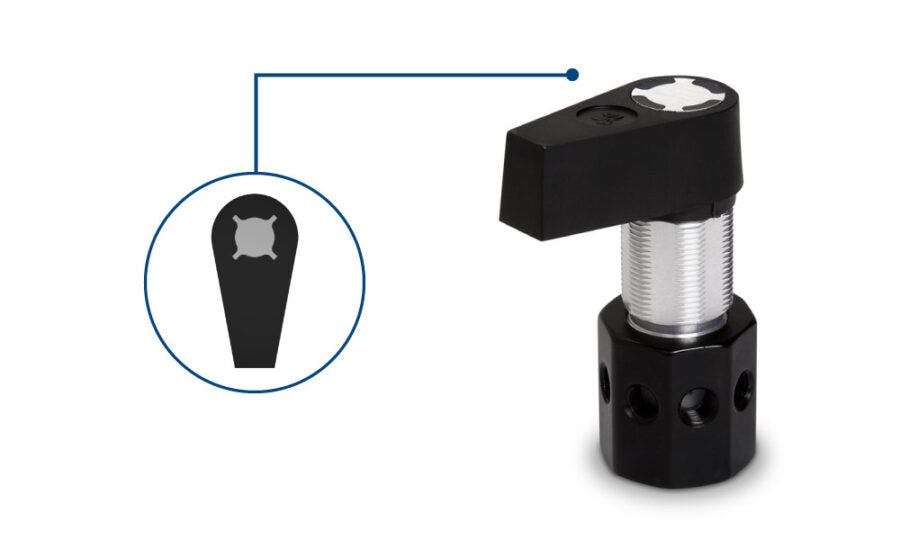

Hamilton Loop Valve HVLX 8-7 Sampling

HVX valves are physically the largest valves. A larger port internal diameter allows increased fluid flows even with moderately viscous fluids. HVX valves can be used free standing or panel-mounted using an optional locking nut, Part # 35121. 6- and 8-port distribution and loop valves are available only in the HVX body style.

Hamilton (HV) Plug Valves provide an economical and flexible method of custom-building a fluid flow control system, from a simple on/off valve to a more complex multi-valve arrangement, using a combination of loop and distribution valves. The small valve body with its chemically inert PTFE/CTFE flow path is ideally suited for low pressure (100 psi) applications.

All HV Plug Valves allow you to select and interchange a wide variety of fittings, adapters and tubing, including male and female luers, FEP tubing assemblies, and adapters which thread directly into the valve providing an endless variety of valve configurations for any flow application.

Loop valves are used to direct and redirect fluids. 4-, 6-, or 8- port valves are available with a loop type valve plug. The 4- port valve is available in HV, HVP and HVX body styles. The 6- and 8-port valves are only available in the HVX body style. The flow configuration drawings show the possible fluid flow paths for a 4-port valve with a loop type plug.

• Wetted paths are chemically inert TEFLON® and Kel-F® materials (100 psig or less)
• Valves are for stand alone use or HVX and HVP valves can also be panel mounted
• Valve position is controlled manually via a handle attached to the valve stem
• Valve connections are via 1/4-28 UNF-2B (Unified Fine) fittings

Valve Model 8-7
Valve Model Description Loop Flow Path 8-ports
Fluid Path PTFE/CTFE
Valve Size HVX
Nominal Port Diameter 0.040 inch (1 mm)
Valve Outer Body Dimension 1 inch (25.4 mm)
Housing Material Aluminum
Total Dead Volume 6.5 µL
Actuated Manual
Break Away Torque 65 in oz. (455 mNm)
Panel Mounting Yes
Panel Thickness 0.625 inch (15.9 mm)
Thread Depth 0.219 inch (5.6 mm)
Threaded Connection ¼-28
Operating Temp High 38 °C (100 °F)
Operating Temp Low -12 °C (10 °F)
Operating Pressure 0 to 100 psig (0 to 6.9 bar)
Storage Temp High 38 °C (100 °F)
Storage Temp Low -18 °C (0 °F)
