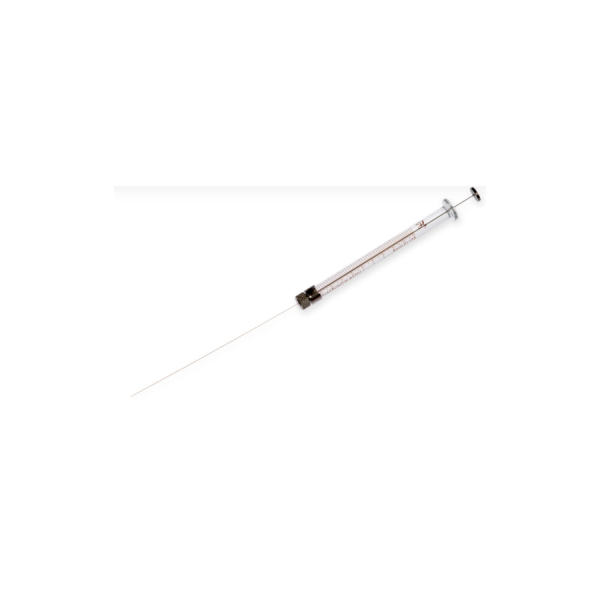

Hamilton 10 µL, Small Removable NDL, 0.17 mm, 10 cm, point style 3
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 87404
On-column injection employs the direct introduction of the liquid sample into the column. This is very useful for the analysis of thermally unstable samples and avoids boiling point discrimination. On-column injection requires special syringes with the following features:
- Small outer diameter needles adjusted to the inner diameter of the column (0.17 mm needle for columns with 0.25 mm inner diameter, 32 gauge for columns with 0.25 mm inner diameter and 26 gauge for columns with a 0.53 mm inner diameter)
- Longer needles tailored to pass through the injector and reach within the capillary column
- Point style 2 adapted to the typical septum of the on-column injector
- Small volumes of 5 or 10 µL
Volume | 10 µL |
---|---|
Syringe Type | Gastight |
Syringe Series | 1700 |
Termination | Removable Needle (RN) |
Needle | Small RN |
Gauge | 0.17 mm |
Point Style | 3 |
Needle Length | 3.94 inch (100 mm) |
Fluid Path | PTFE, boroscilicate glass, fused silica |
Autoclavable | Yes |
Gas Sterilizable | Yes |
Pressure | 1000 psig (68.9 bar) |
Maximum Temperature | 115°C / 239°F |
Minimum Temperature | 10°C / 50°F |
Barrel Inner Diameter | 0.018 inches (0.460 mm) |
Barrel Outer Diameter | 0.260 inches (6.60 mm) |
Needle Inner Diameter | 0.00394 inches (0.10 mm) |
Needle Outer Diameter | 0.00669 inches (0.17 mm) |
Std Needle Dead Volume | 0.91 µL |
Sales Quantity | 1 syringe per pack |
