Hamilton 62 RNR 2.5µL (22s/51/3)

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 87942

Hamilton 62 RNR 2.5µL (22s/51/3)

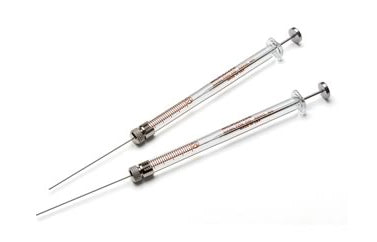

The 600 series syringes are a half stroke version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 0.25 μL up to 5 μL. The 600 series is often used in applications that require one handed operation because of the short stroke length and the reinforced plunger.

Volume 2.5 µL
Syringe Type Microliter
Syringe Series 600
Termination Removable Needle (RN)
Needle Small RN
Gauge 22s gauge
Point Style 3
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass
Autoclavable Yes
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Temperature 115°C / 239°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.014 inches (0.343 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.005 inches (0.13 mm)
Needle Outer Diameter 0.028 inches (0.711 mm)
Std Needle Dead Volume 1.13 µL
Sales Quantity 1 syringe per pack
