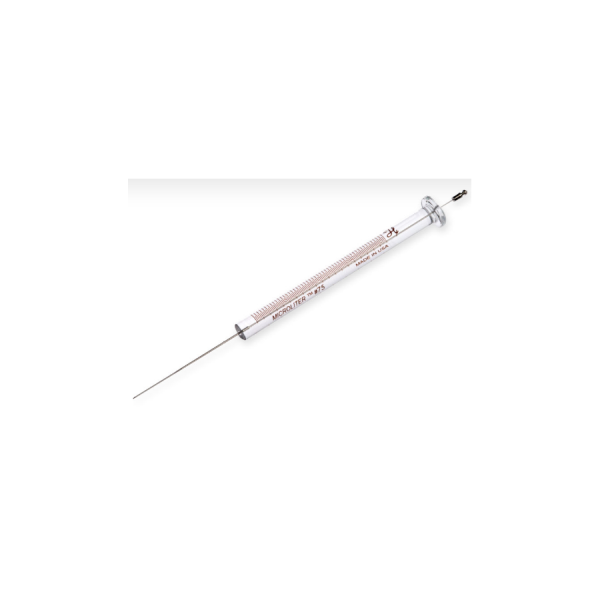

Hamilton 5 µL Microliter Agilent Autosampler Syringe 23s-26s gauge, 1.71 inch, point style AS

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 87993

Hamilton 5 µL Microliter Agilent Autosampler Syringe 23s-26s gauge, 1.71 inch, point style AS

Hamilton offers many quality syringe options for the Agilent 7693A, 7673. 7683 and 6850 ALS, as well as syringes for the Agilent 7670, 7671, and 7672 gas chromatography autosamplers.

Volume 5 µL
Syringe Type Microliter
Syringe Series 700
Termination Cemented Needle (N)
Needle Cemented Needle
Gauge 23s-26s gauge
Point Style AS
Needle Length 1.71 inch (43.4 mm)
Fluid Path SST, borosilicate glass
Autoclavable No
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Temperature 50°C / 122°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.014 inches (0.343 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.0133 - 0.005 inches (0.64 - 0.13 mm)
Needle Outer Diameter 0.0283 - 0.0187 inches (0.72 - 0.47 mm)
Std Needle Dead Volume 0.46 µL
Sales Quantity 1 syringe per pack
