ceramus^®

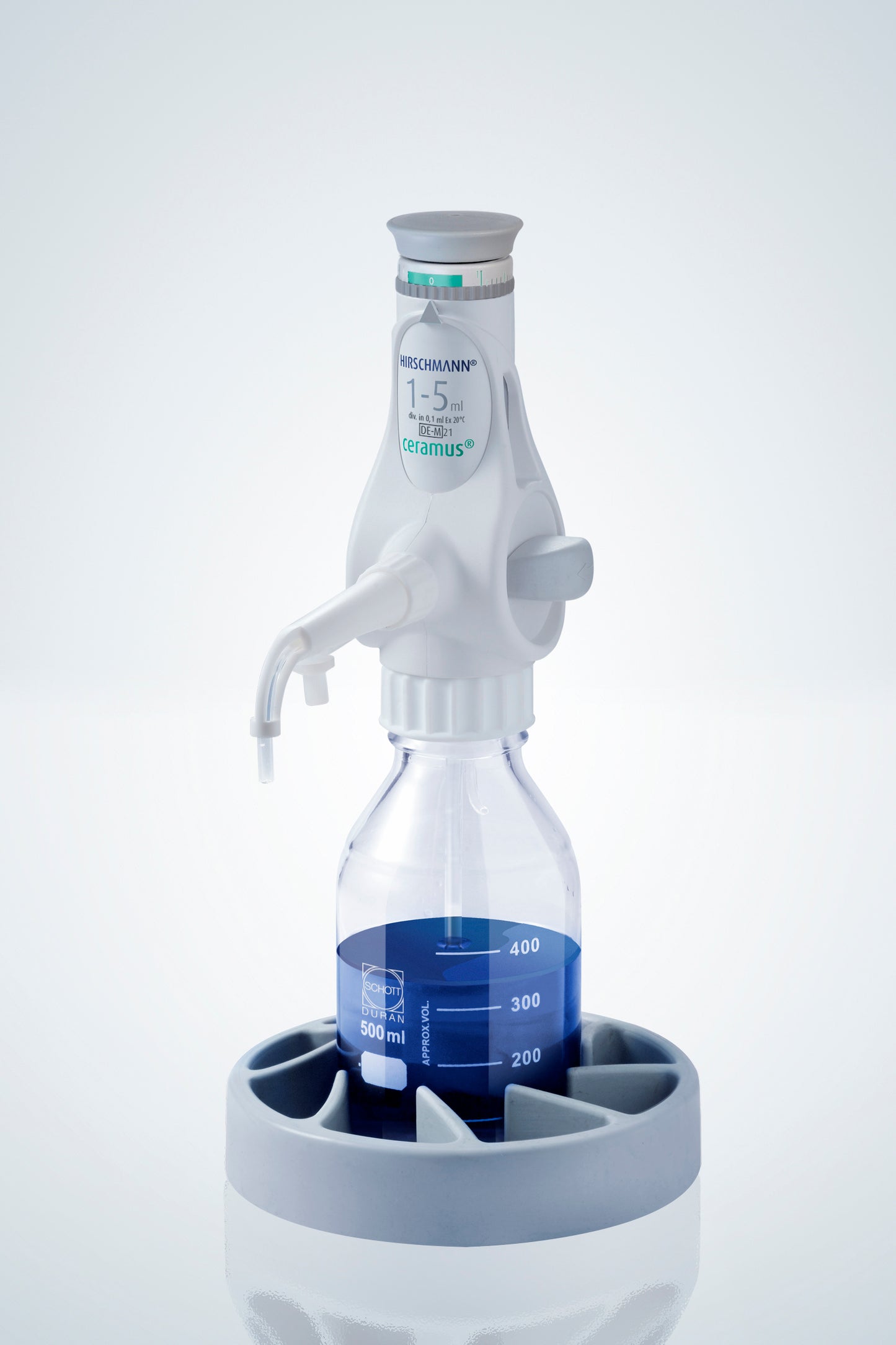

A dispenser with a reagent recirculation system for manual dispensing directly from the reagent bottle. Available in six different volumes.

Uncompromising reliability - years of experience gained by Hirschmann in liquid handling are reflected in the perfection embodied in ceramus^® and absolute attention to detail. The graduation gauge and digital volume configuration engagement guarantee consistent precision and volume dispensing and ensure reproducible results – absolutely independent of the user. The dispensing piston made of high-purity aluminium oxide ceramic and the DURAN^® glass cylinder guarantee a maximum level of chemical and thermal resistance. The high-quality materials in all parts conveying medium enable use within a temperature range from 4° C to 50° C. The complete unit can be steam sterilised at 121° C without dismantling.

A special HF version designed for dispensing very aggressive media is also available. The piston and cylinder are made of high-purity aluminium oxide ceramic, the valve seats and balls are ceramic and valve springs are made of platinum / iridium.

Overview of details:

• Piston made of high-purity aluminium oxide ceramic
• For fixed and variable volumes, from 0.2 mL to 60 mL
• The complete unit can be steam sterilised at 121° C without dismantling
• Free rotation
• Media recirculating system for simple and rapid venting without reagent loss
• User-independent, reproducible volume dispensing
• Digital volume configuration engagement, calibrated for a lifetime
• Robust ejection unit
• Threaded suction hose fitting
• Optimum chemical and thermal resistance of parts conveying medium
• Individual quality certificate with conformity certificate

• Adapter with filling tube NS 12/21 for funnel
• Bottle holder, grey
• Amber glass bottles
• Discharge tube unit, dispenser ceramus^®, opus^® dos, akku-drive^® dos with recirculation
• Discharge tube unit, titration, opus^® solarus^®, akku-drive^® with recirculation
• Discharge valve, ceramus^®, solarus^®, opus^®, ceramus^® classic for 30+60 ml, EM dispenser for 10-60 ml, akku-drive^®
• Double sleeve, stainless steel
• Fitting wrench for valves
• Recirculation hose
• Recirculation valve
• Round filter set with plug connection on one side
• Base for separate media supply
• Stand clip, stainless steel for opus^®, solarus^®, ceramus^®
• Stand, stainless steel, 500 mm long
• Suction hose, ceramus^®, opus^®, solarus^® and akku-drive^® with recirculation
• Suction valve, ceramus^®, solarus^®, opus^®, ceramus^® classic for 30 + 60 ml, EM dispenser for 10-60 ml akku drive^®
• Threaded adapter, opus^®, solarus^®, ceramus^®, akku-drive^® with recirculation
