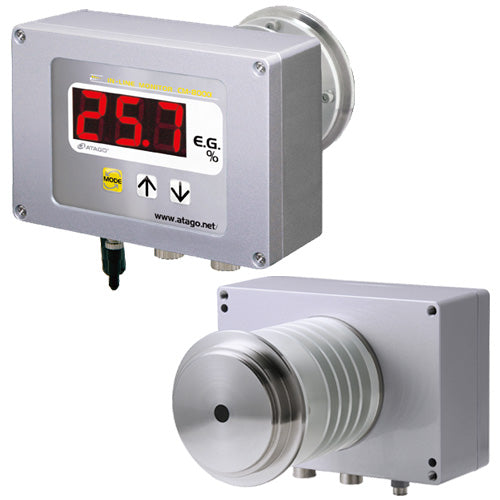

- Atago In-line Ethylene Glycol Monitor CM-800α-EG
The CM-800α-EG is specially designed for in-line concentration measurements of ethylene glycol solutions used as coolants,LLC,brine,anti-freeze, and de-icing fluids. It also has a secondary scale for the freezing point.
Specifications
Model | CM-800α-EG |
---|---|
Cat.No. | 3531 |
Range | E.G. : 0.0 to 90.0% Freezing point : -50 to 0゚C / -58 to 32゚F Temperature : -15 to 160゚C / 5 to 320゚F |
Resolution | E.G. : 0.1% Freezing point : 1゚C / 1゚F Temperature : 1゚C / 1゚F |
Accuracy | E.G. : ±0.4% Freezing point : ±1゚C / ±1゚F Temperature : ±1゚C / ±1゚F |
Temperature compensation | 5 to 100゚C |
Output | (1) DC 4 to 20mA (2) RS-232C output |
Power Supply | DC24V |
[*1] : The cable can be ordered to a custom length of up to 5m.
Options
· Stand (Stand for mounting the CM-800α and the AC adapter) : RE-8607
· AC adapter AD-32 (AC100V) : Cat.No.3527
· AC adapter AD-33 (AC110 to 120V) : Cat.No.3528
· AC adapter AD-34 (AC220 to 240V) : Cat.No.3529
See here for fitting options.
* Calibration Certificate : Contact Esslab for details.
