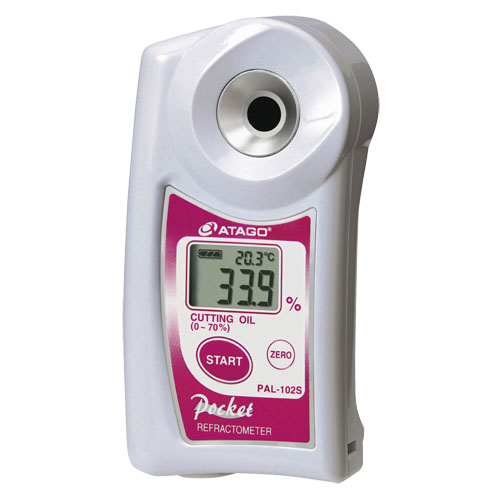

This is most suitable for the measurement of the percent dilution and controlling the percent concentration of hydraulic oil and cleaning liquid. Cutting oil, molding lubricant and rust resistance liquid are also well within the measurement range of the PAL-102S. With a water resistant design, the PAL-102S can also float in water which will help to prevent unforeseen accidents. Quick and easy measurements can be taken with the PAL-102S anywhere on your factory floor.
Specifications
| Model | PAL-102S |
|---|---|
| Cat.No. | 4502 |
| Range | Cutting Oil : 0.0 to 70.0% |
| Resolution | Cutting Oil : 0.1% Temperature : 0.1ﾟC |
| Accuracy | ±0.2% |
| Temperature compensation | 10 to 100ﾟC |
Common Specification
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | About 3 seconds |
| Power Supply | 2 × AAA Batteries |
| Battery Life | About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only) |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |
Options
· PAL-CASE : RE-39409
· PAL Silicone Cover : RE-39413
· STRAP : RE-39410
· Battery Case Cover With O-Ring : RE-38163
· USB Battery Charger : RE-34801
