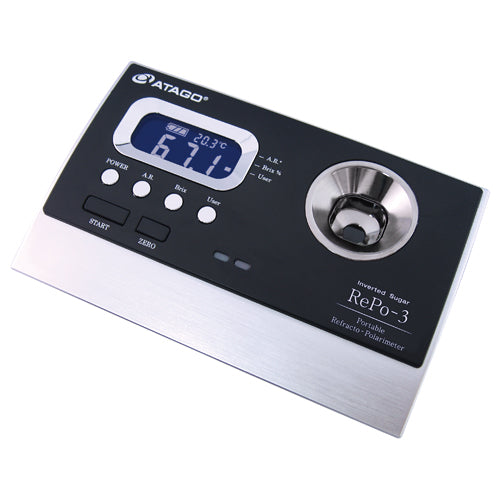

Atago Portable Refracto-Polarimeter RePo-3
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 5013
The RePo-3 can determine the amount of invert sugar (%) converted from sucrose.
In addition to angle of rotation and Brix, the RePo-3 also converts and displays the amount of invert sugar (%) derived from sucrose. The RePo-3 is ideal for various industries such as sugar refining.
Specifications
| Model | RePo-3 |
|---|---|
| Cat.No. | 5013 |
| Measurement Readings | Angle of Rotation,Brix, Invert ratio % at Inverted sugar, Temperature |
| Range | Angle of Rotation:-5.00 to +5.00°(*) *Convertible to -25.00°to +25.00°with a 100mm observation tube *Convertible to -50.00° to +50.00°with a 200mm observation tube Brix:0.0 to 85.0% Invert ratio% of sucrose:0.0 to 99.9% Temperature: 15.0 to 40.0℃ |
| Resolution | Angle of Rotation : 0.01° Brix : 0.1% Invert ratio : 0.1% Temperature : 0.1℃ |
| Accuracy | Angle of Rotation : ±0.1° (20℃) Brix : ±0.2% Temperature : ±1℃ |
| Temperature compensation | Brix ： 15 to 40℃ |
| Light source | LED |
| Measurement Time | 12 seconds |
| Power Supply | Size AAA alkaline battery x4 |
| International Protection Class | IP67 |
Options
· Standard liquid Repo-series : RE-99110
· MAGIC™ for RePo : RE-79000
· RePo Small Volume Adapter : RE-72093
