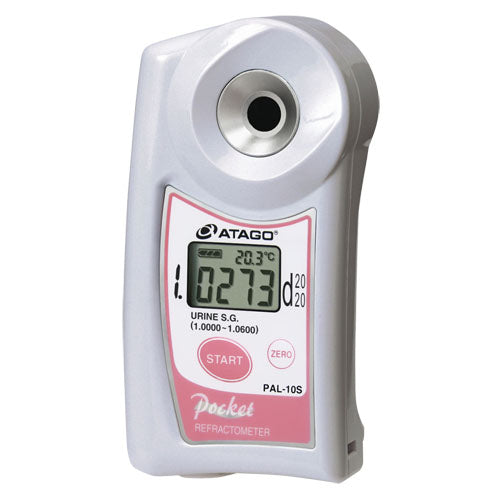

The PAL-10S is a digital hand-held compact refractometer to measure urine S.G. To operate it, simply place a drop of urine on the prism top and press the "Start"key. Then, the urine S.G. value will be displayed on the LCD instantly.
Specifications
| Model | PAL-10S |
|---|---|
| Cat.No. | 4410 |
| Scale | Urine (S.G.) |
| Range | Urine S.G. : 1.0000 to 1.0600 |
| Resolution | Urine S.G. : 0.0001 |
| Accuracy | Urine S.G. : ±0.001 |
| Temperature compensation | 10 to 35°C |
Common Specification
| Sample Volume | 2 to 3 drops |
|---|---|
| Measurement Time | About 3 seconds |
| Power Supply | 2 × AAA Batteries |
| Battery Life | About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only) |
| International Protection Class | IP65 Water resistant |
| Dimensions & Weight | 5.5 × 3.1 × 10.9cm 100g (main unit only) |
Options
· PAL-CASE : RE-39409
· STRAP : RE-39410
· Battery Case Cover With O-Ring : RE-38163
* Calibration Certificate : Contact Esslab for details.
· USB Battery Charger : RE-34801
