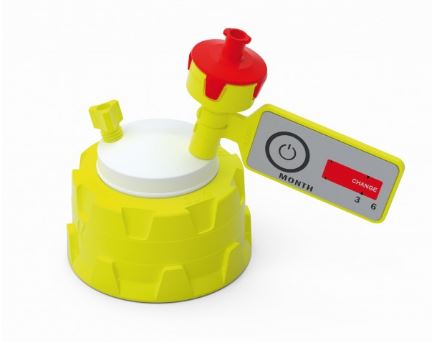

Cap GL45 (2x UNF 1/4") Screw cap GL45 made of PPS yellow, insert made of PTFE with 1 capillary connection (UNF 1/4). Including 1 air valve with service life indicator, 1 fitting for tubing O.D. 3,2 mm (PFA-yellow).

Applications
Perfectly matched system for extraction of eluents. Tubing can be inserted onto the ground of the bottle by means of the b.safe Fittings made of PFA. The conical seal cone clamps the tubing and seals the connection safely. The b.safe Air Valve is especially adapted to the flow rate in HPLC. The integrated non-return valve avoids evaporation of solvents and lets flow ambient air into the bottle in case of vacuum. The upstream porous PTFE membrane restrains pollutant particles and other contaminations from outside. The 6 months service life of the Air Valve can be easily monitored through either activating the display on the service life indicator and exchanging the valve in case of completely red colouring or documentation of the exchange date by hand and clip on the service life indicator at the valve.
