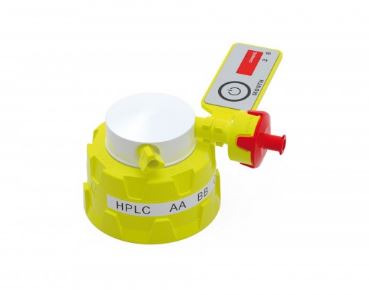

Space-saving Caps GL45 (2x UNF 1/4") Cap GL45 made of yellow PPS, insert made of PTFE with 1 capillary connection (UNF 1/4) inclined in an 90° angle to the bottle thread. Accessories: 1 Air Valve with Service Life Indicator, 1 Fitting for tubing O. D. 3,2 mm (yellow PFA).

Applications
Especially recommended for applications with confined height space. Perfectly matched system for removal of eluents. Tubing can be inserted onto the ground of the bottle by means of the b.safe Fittings made of PFA. The conical seal cone clamps the tubing and seals the connection safely. The b.safe Air Valve is especially adapted to the flow rate in HPLC. The integrated non-return valve avoids evaporation of solvents and lets flow ambient air into the bottle in case of vacuum. The upstream porous PTFE membrane restrains pollutant particles and other contaminations from outside. The 6 months service life of the filter can be easily monitored through either activating the display on the cap and exchanging the valve in case of completely red colouring or documentation of the exchange date by hand and clip in the display at the valve.
