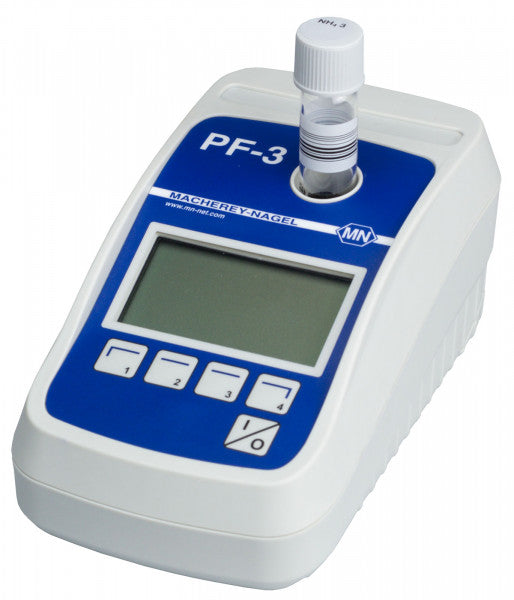

Compact photometer PF‑3 Fish, in box

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 919345

The compact photometer PF‑3 Fish is the smallest member of the MACHEREY‑NAGEL photometer family. The Fish version is especially designed for the need of aqua culture water analysis. It supports measurements of Ammonium, Chlorine, Iron, Silica, Copper, Nitrate, Nitrite, pH, Phosphate and Oxygen. The handy and compact but strong design makes this lightweight an ideal companion for mobile analysis.

The device completes our product portfolio and perfectly fits our tradition of reliability, user friendliness and innovation.
The instrument comes in multiple versions, equipped with three LEDs and interference filters, designed to meet the analysis requirements of specific applications.

Together with the approved VISOCOLOR ECO test kits, brandnew VISOCOLOR Powder Pillows and high quality NANOCOLOR tube tests from MACHEREY‑NAGEL, the PF‑3 is perfectly suited for mobile analysis directly at the place of sampling.

Optionally, the device comes in a practical case with pre-equipped test kits, in a cardboard box or in an empty case for the individual combination with our VISOCOLOR ECO test kits.

Product Specifications

  • Type
    LED photometer with microprocessor control, self-test and auto calibration
  • Light source
    LED
  • Optical system
    LED + interference filters
  • Wavelength
    365 nm / 450 nm / 595 nm
  • Wavelength accuracy
    ± 2 nm, bandwidth at half transmission 10 nm–12 nm
  • Preprogrammed tests
    NANOCOLOR tube tests
  • Cuvette slot
    Round tubes 16 mm OD
  • External light
    Insensitive to external light, fast measurements without cuvette slot cover
  • Data memory
    50 measurements
  • Display
    Backlit graphic display, 128 x 64 pixel
  • Auto off
    Inactive or automatic shutdown after 5 min, 10 min, 15 min, 20 min
  • Internal quality control
    With NANOCONTROL NANOCHECK 2.0
  • Operation
    Self-explanatory menu guidance, plastic foil keypad, test selection via parameter lists
  • Language
    DE / EN / FR / ES / IT / HU / PL / PT / TR 
  • Interfaces
    Mini-USB
  • Update
    Free via internet / PC
  • Operating range
    10–40 °C, max. 80 % relative humidity (non-condensing)
  • Power supply
    3 AA batteries, rechargeable USB interface; optional internal accu-pack
  • Housing
    Shock-resistant; waterproof and dustproof, according to IP 68
  • Dimensions
    170 x 95 68 mm
  • Weight
    0.5 kg
  • Warranty
    2 Years
  • CE certified
    Yes
  • Scope of delivery
    Photometer, manual, batteries and certificate
  • Hazardous material
    No

Simple

  • Intuitive operation with only four keys
  • Flat menu structure
  • Bright display for safe readings

Robust

  • Glass fiber reinforced housing for extreme durability
  • Water- and dustproof according to IP 68
  • Shock-resistant optics

Flexible

  • Various case solutions including reagents
  • Additional parameters available f.o.c.
  • Compatible with VISOCOLOR ECO tests, VISOCOLOR Powder Pillows and NANOCOLOR tests

Small, strong, smart

The handy and compact design makes this lightweight the ideal companion for mobile analysis. Its simple operation allows measurements within seconds. Besides the measurement accuracy, simplicity and user friendliness are key features of all MACHEREY‑NAGEL devices. The interaction of context-sensitive icons and only four
buttons guarantees a smart, clear and language-independent operation.

Fast and reliable results

The centerpiece of the PF‑3 is its high-quality optic with the specially selected LEDs and corresponding interference filters. The unique “open slot” technology allows measurements without cuvette slot cover, thus emphasizing the high technical standard of the instrument. This yields into a simple and quick operation for the user, together with highly reliable results. MACHEREY‑NAGEL provides free PC software, for an even more comfortable operation. The software makes data management convenient, simple and efficient. Additionally it guarantees a forgery-proof data management.

Be prepared

The variable power supply is of particular convenience for the user and enables reliable measurements in all situations. Besides batteries and an accu-pack, the device can also be powered directly via an USB cable or a power adaptor.
