Benefits

• Maximum process safety through non-contact, inductive and digital signal transmission: No contact corrosion, absolutely watertight, no interference potential.

• Increased availability of the measuring point: Digital data transmission provides an automatic error message if the signal is lost.

• More flexibility in plant planning and installation: Cable length up to 100 m is possible.

• Approved for hazardous area use.

Specifications

• Measuring principle

  Sensor ORP / Redox

• Application

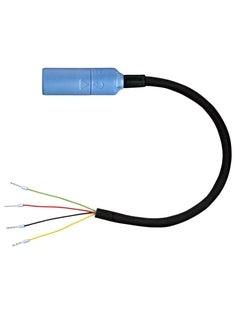

  Measuring cable for contactless, inductive, digital transmission of measurement signals.

• Installation

  Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter.

• Characteristic

  Inductive, digital transmission of measurement signals and energy.
  Not influenced by moisture, EMC-fields and corrosion

• Design

  Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
  No open contacts, resistant against humidity

• Material

  Cable sheath: TPE
  Junction box: aluminum

• Dimension

  Diameter: 6.3 mm (0.25 inch)
  Cores: 2x2 cores, twisted pairs
  Length: up to approx. 100 m (328 ft)

• Process temperature

  -25 to 135 °C (-13 to 277 °F)

• Temperature sensor

  For digital sensors with inductive plug-head with and without temperature sensor

• Ex certification

  ATEX II 1G Ex ia IIC T3/T4/T6
  FM, CSA IS Cl.1 Div 1 Gr. A-D
  ATEX, NEPSI II 3G Ex nL IIC
  TIIS

• Additional certifications

  Also available as TÜV approved SIL version
