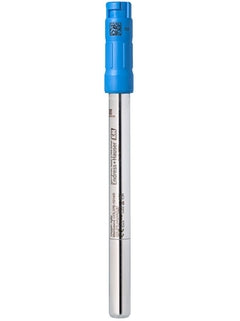

Digital oxygen sensor Memosens COL37E
Please Login or Register to see price.Digital oxygen sensor Memosens COL37E
Agile Memosens 2.0 oxygen sensor for laboratory measurements and random sampling in the field
All Memosens calibration and operation information are stored in a chip in the sensor head, Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection.
Field of application
The optical oxygen sensor Memosens COL37E allows for easy handling and maintenance. It allows simple adjustments to enhance the oxygen measurement and has a very fast response time. With the Memosens 2.0 technology operators also benefit from true plug and play. The sensor is agile in all environments and allows quick checking of oxygen values in aeration tanks, fish farms and surface water.
Memosens COL37E is suited for::
-
Check of on-line measuring loops
-
Analysis of grab samples (on-site as well as in the laboratory)
-
Measurement at process points where regular checks are recommended
In the following applications:
Surface water
Wastewater
Process water
Benefits
-
Flow-free C-shaped optical cap eliminates interference of air bubbles
-
Easy handling thanks to optical sensor technology without electrolyte and polarisation time
-
Long lifetime of the robust optical spot for stable measurements
-
Memosens technology with true plug and play and conclusive traceability
-
Easy cleaning due to optical measurement principle and seamless design
-
Temperature compensation and registration with the integrated temperature sensor
-
Supports the requirements of quality management with tamper-proof stored information such as serial number or calibration history
Product Specifications
-
Measuring principle:
Optical oxygen measurement
-
Application:
Measurements in the field of surface water, wastewater and process water
-
Characteristic:
Agile digital Memosens 2.0 optical oxygen sensor for laboratory measurements and random sampling in the field
-
Measurement range:
0 to 200 %SAT
-
Material:
Stainless steel
-
Dimension:
Diameter: 12 mm (0.47 inch) Shaft length: 120 mm (4.72 inch)
-
Process temperature:
–5 to +60 ˚C (23 to 140 ˚F)
-
Process pressure:
1 bar, not intended for continues measurment in process
-
Temperature sensor:
Pt1000
-
Connection:
Inductive, digital connection head with Memosens 2.0 technology
-
Ingres protection:
IP68
