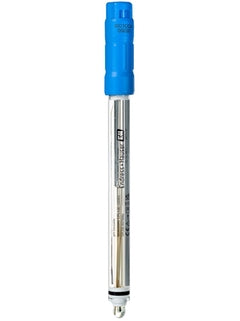

Digital pH sensor Memosens CPL53E
Please Login or Register to see price.Digital pH sensor Memosens CPL53E
Versatile Memosens 2.0 pH glass sensor for laboratory measurement and random sampling
All Memosens calibration and operation information are stored in a chip in the sensor head, Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection.
Field of application
The Memosens CPL53E pH glass sensors is the all-rounder for use in the laboratory. It covers a wide variety of samples and application: whether check of measuring loops or random sampling. Thanks to Memosens 2.0 technology, this sensor provides reliable, highly accurate measurements with a fast response time. Furthermore, the electrode is long lasting and maintenance free since the sensors have a gel filling.
Memosens CPL53E is suited for::
-
Check of on-line measuring loops
-
Analysis of grab samples (on-site as well as in the laboratory)
-
Measurement at process points where regular checks are recommended
In standard applications as watery media, e.g. water based solutions.
Benefits
-
Time-saving random sampling with pre-calibrated sensor which allows fast and easy switches of sensors
-
Easy handling with Memosens 2.0 bayonet connector
-
Supports the requirements of quality management with tamper-proof data storage including serial number and calibration history
-
Maintenance-free pH electrode without the need to refill electrolyte
-
Temperature compensation with integrated temperature sensor
Product Specifications
-
Measuring principle:
Potentiometric
-
Application:
Measurements in standard applications in the laboratory
-
Characteristic:
Digital Memosens 2.0 compact gel pH glass sensor for standard use in laboratories Versatile pH sensor with very fast response time
-
Measurement range:
pH 0 to 14 (1 to 12 application range)
-
Material:
Glass
-
Dimension:
Diameter: 12 mm (0.47 inch)
Shaft length: 120 mm (4.72 inch) -
Process temperature:
–5 to 100 °C (23 to 212 °F) (0 to 80 °C (32 to 176 °F) application range)
-
Process pressure:
1 bar, not intended for continues measurment in process
-
Temperature sensor:
NTC 30kΩ
-
Connection:
Inductive, digital connection head with Memosens 2.0 technology
-
Ingres protection:
IP68
