Hamilton 1025BFP 25ml Syringe, YDU-2

Please Login or Register to see price.
SKU: 59000-55

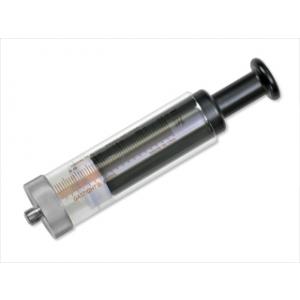

Hamilton 1025BFP 25ml Syringe, YDU-2

For any syringe pump, the key to achieving the most accurate dispenses is eliminating all air from the fluid path. Traditional syringes trap approximately 50 µL of air between the tip of the syringe and the valve. For small syringes, this trapped air is the last to leave the syringe and the first to be drawn back in, making them difficult if not impossible to prime.

The Bubble Free Prime (BFP) syringe has a conical plunger tip that extends through the threaded termination and into the valve. This unique design expels the air from the syringe and valve decreasing the number of priming cycles required.

Specifications

Needle Sold Separately Yes
Volume 25 mL
Syringe Type Gastight, Bubble Free Prime
Syringe Series 1000
Termination Bubble Free Prime™ (BFP, 5/16"-28)
Needle No Needle Available
Plunger Style X-Style
Fluid Path Borosilicate glass, PTFE, PFA
Autoclavable No
Gas Sterilizable Yes
Pressure 100 psig (6.9 bar)
Maximum Temperature 80°C / 176°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.907 inches (23.0 mm)
Barrel Outer Diameter 1.07 inches (27.1 mm)
Sales Quantity 1 syringe per pack
Plunger Tip Material PTFE
