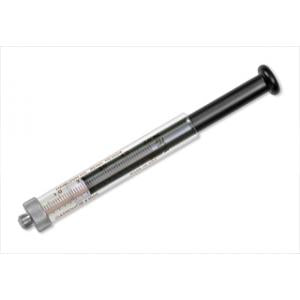

Hamilton 1005BFP 5.0 ml Syringe

Please Login or Register to see price.
SKU: 59000-45

Hamilton 1005BFP 5.0 ml Syringe

For any syringe pump, the key to achieving the most accurate dispenses is eliminating all air from the fluid path. Traditional syringes trap approximately 50 µL of air between the tip of the syringe and the valve. For small syringes, this trapped air is the last to leave the syringe and the first to be drawn back in, making them difficult if not impossible to prime.

The Bubble Free Prime (BFP) syringe has a conical plunger tip that extends through the threaded termination and into the valve. This unique design expels the air from the syringe and valve decreasing the number of priming cycles required.


Needle Sold Separately Yes
Volume 5 mL
Syringe Type Gastight, Bubble Free Prime
Syringe Series 1000
Termination Bubble Free Prime™ (BFP, 5/16"-28)
Needle No Needle Available
Plunger Style X-Style
Fluid Path Borosilicate glass, PTFE, PFA
Autoclavable No
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Temperature 115°C / 239°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.406 inches (10.3 mm)
Barrel Outer Diameter 0.530 inches (13.5 mm)
Sales Quantity 1 syringe per pack
Plunger Tip Material PTFE
Country of Origin: US

Tariff No: 9018319000
