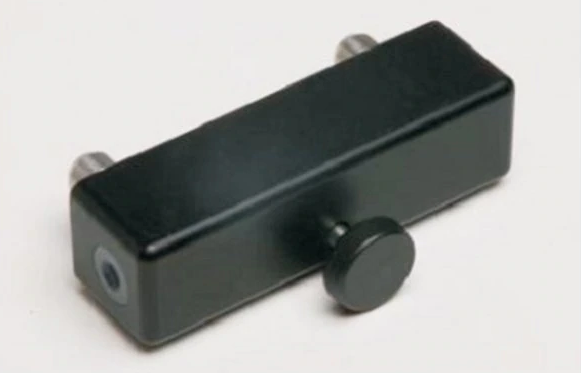

- Hamilton ML-500 DILUTER VALVE METRIC
The Microlab 500 Valves are used on the Dual Syringe Diluters.
Specifications
| Valve Model Description | Microlab 500 Diluter Valve |
|---|---|
| Fluid Path | PTFE/CTFE |
| Nominal Port Diameter | 0.059 inch (1.5 mm) |
| Housing Material | PEEK |
| Actuated | All Microlab 500 dual syringe instruments |
| Break Away Torque | 65 in oz. (455 mNm) |
| Panel Mounting | No |
| Threaded Connection | M6 |
| Operating Temp High | 38 °C (100 °F) |
| Operating Temp Low | -12 °C (10 °F) |
| Operating Pressure | 0 to 100 psig (0 to 6.9 bar) |
| Storage Temp High | 38 °C (100 °F) |
| Storage Temp Low | -18 °C (0 °F) |
