- Hamilton ML-600 Dual Syringe Diluter
DiluterIntended use

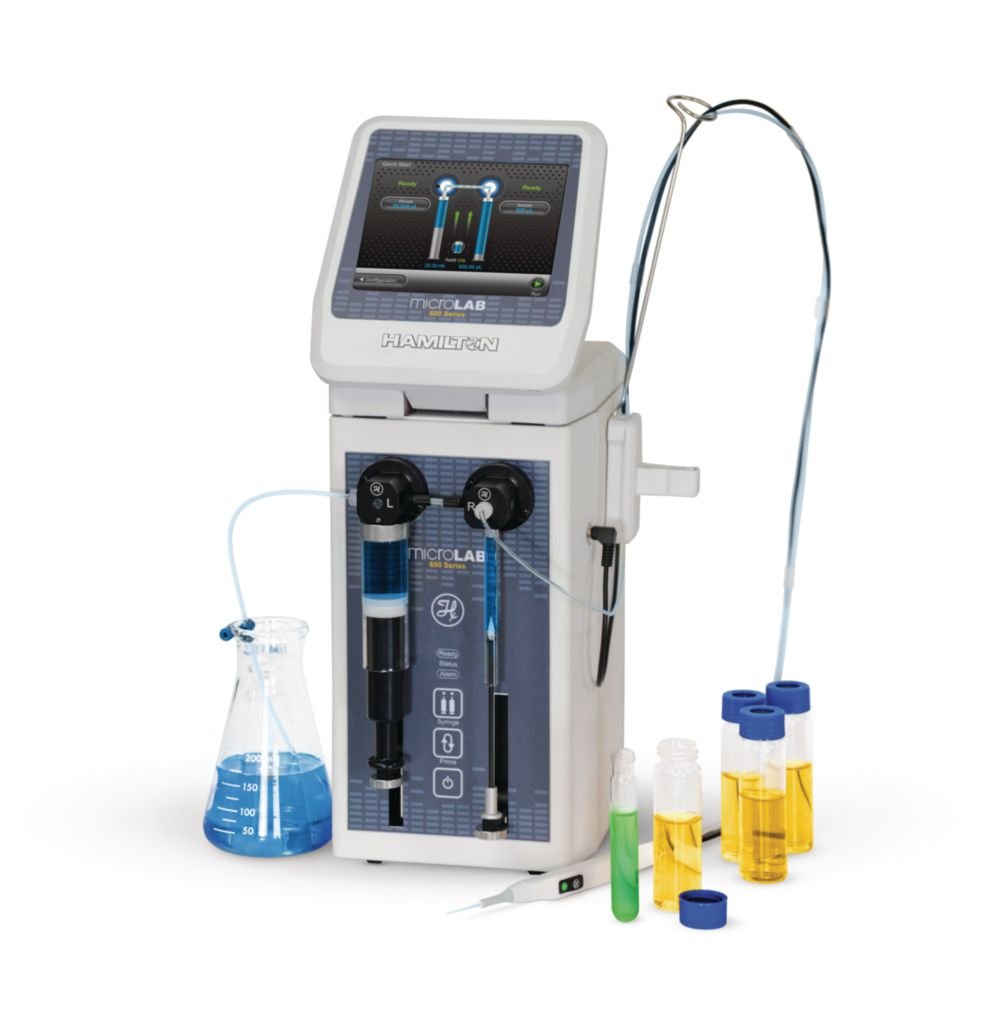

The Microlab 600 is a highly precise syringe pump with a graphical user interface designed to quickly and easily dilute and dispense liquids. This positive displacement system provides better than 99% accuracy, independent of a liquid's viscosity, vapor pressure and temperature. The inert fluid path minimizes sample carry over and improves compatibility with harsh chemicals.
Shipped complete with Concorde Hand Probe, Universal Valves, Fill/Dispense Tubing, Accessory Holder & Country Specific Power.
The Dual Syringe Diluter configuration uses two syringes to create up to a 1:50,000 dilution in a single step, drastically reducing preparation time and wasted buffer. The diluent washes the tubing between each sample, minimizing carryover for even the most sensitive techniques including:
■ Atomic absorption (AA)
■ Inductively coupled plasma spectroscopy (ICP)
■ High performance liquid chromatography (HPLC)
■ Gas chromatography (GC)
■ Liquid scintillationChromatography Columns
-
All Labs Can Use the Microlab 600
Every laboratory has tasks too small to automate and too large to reliably accomplish by hand. The Microlab 600 is a semi-automated liquid handler designed specifically for these in-between applications that increase throughput and consistency while reducing cost and wasted buffer. Common industries using the product are:
■ Pharmaceutical
■ Forensics
■ Environmental Analysis
■ Mining
■ Manufacturing -
Technical specifications
Specifications: MICROLAB 600 Syringe Pump Accuracy: +/- 1% Precision: +/- 0.2% Flow Rate: 0.003 - 6000 µL/second (depending on the syringe that is selected) Syringe Resolution: 0.02% of the nominal syringe volume Compatible Syringes; 10, 25, 50, 100, 250, 500 µL, 1, 2.5, 5, 10, 25, and 50 mL Fluid Path: Borosilicate, PTFE, CTFE Communication Type: Ethernet, 10/100 BASE-T Communication Protocol: .NET 2.0 Application Programming Interface (API) Pump Memory: One method stored in non volatile memory Calibration: Factory tested and traceable to N.I.S.T. standards Certifications: CE, CSA Power Rating: 24 VDC, 2.5A Dimensions: 7 x 5.5 x 10.5 inch (177.8 x 139.7 x 266.7 mm) Weight: 13 lbs (5.9 kg) Specifications: MICROLAB 600 Controller Screen Size: 5.7 inch (15cm diagonal) Screen Resolution: 640 (H) x 480 (V) pixels Tilt Positions: 5 positions from 90° to flat Mounting Options: On top of the Syringe Pump, Bench Top, or Wall Mount Program Memory: 2 GB (With Advanced Upgrade) Communication Type: Ethernet, 10/100 BASE-T Power Rating: 24VDC, 2.5A Dimensions: 2.25 x 6.5 x 7 inch (57.2 x 165.1 x 177.8mm) in down position Weight: 1.9 lbs (0.86 kg)
An accuracy of 1% and 0.2% precision is achieved when dispensing above 10% of a syringes nominal volume. Reasonable accuracy can be achieved down to 1% of a syringes nominal volume. The Microlab 600 syringe allows for programming of dispense volumes in increments less than 0.01% of the nominal syringe volume. -
How to set up and run the Microlab ML600 Diluter / Dispenser from unpacking to programming.
This playlist of videos will show you how to set up your ML600 from unpacking to getting the instrument ready for use. The topics covered are;- 1. Unpack and setup the ML600
- 2. General Information and tips for the ML600
- 3. Introduction to the Dilution Wizard
- 4. How to prevent carryover issues in dilutions
- 5. Dilutions using viscous or foaming liquids
- 6. Advanced features of the Dilution Wizard
- 7. How to add a wash step to a low ratio dilution
- 8. Aliquot Dispense Wizard
- 9. Semi-automatic sample preparation
- 10. Saving a programme as a custom method
- 11. Creating a Multi-Sample programme on the ML600 for the preparation of CRMs.
- 12. Microlab ML600 Multi-Sample dilutions for Custom solutions
