Zoom

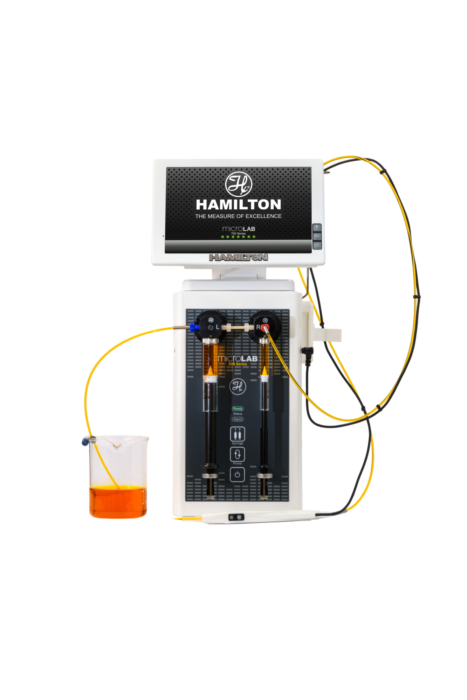

The Microlab 700 is a premium syringe pump that offers exceptional precision and speed while maintaining a user-friendly design. Its intuitive graphical interface enables you to quickly and efficiently dispense even the thickest liquids with ease. This syringe pump is also chemically resistant, making it the ideal choice for handling harsh chemicals.
What's included?
- Dual Syringe Pump (1)
- Premium Controller (1)
- Disposable Tip Hand Probe (1)
- Valves (2 - Left and Right)
- Fill Tubing Assembly (1)
- Syringes (2) - Volume must be specified
- DTHP Dispense Tubing Assembly (1)
- Valve Plugs (2)
- Cross Tube (1)
- Cable Management System (1)
- Tubing Clips (2)
- Power Supply/Cord (1)
Chemical Compatibility
The Microlab 700's fluid path consists of PTFE-based materials (PTFE and CTFE) and borosilicate glass. These materials are resistant to a wide variety of acids and bases
at room-to-moderate temperatures. Most chemicals do not affect PTFE at normal operating temperatures.
Important: Do not use the Microlab 700for prolonged periods at high temperatures with aromatic or highly halogenated compounds. These compounds may cause the
Microlab 's fittings to swell, adversely affecting performance and reducing the life of system components. Below is a chemical compatibility chart.
| Chemical | PTFE | Borosilicate Glass | CTFE (Kel-F) |
|---|---|---|---|
| Acetaldehyde | A | A | A |
| Acetates | A | B | A |
| Acetic Acid | A | A | A |
| Acetic Anhydride | A | 0 | A |
| Acetone | A | A | A |
| Acetyl Bromide | A | 0 | 0 |
| Ammonia | A | A | A |
| Ammonium Hydroxide | A | 0 | A |
| Ammonium Phosphate | A | 0 | A |
| Ammonium Sulfate | A | 0 | A |
| Amyl Acetate | A | A | A |
| Aniline | A | A | A |
| Benzene | A | A | B-C |
| Benzyl Alcohol | A | A | A |
| Boric Acid | A | 0 | A |
| Bromine | A | A-B | A |
| Butyl Acetate | A | A | A |
| Butyl Alcohol | A | A | B |
| Carbon Sulfide | A | A | A |
| Carbon Tetrachloride | A | A | B-C |
| Chloracetic Acid | A | A | A |
| Chlorine, liquid | A | A | B |
| Chlorobenzene | A | 0 | B |
| Chloroform | A | A | B |
| Chromic Acid | A | A | A |
| Cresol | A | A | A |
| Cyclohexane | A | A | B |
| Ethers | A | A | B |
| Ethyl Acetate | A | A | B-C |
| Ethyl Alcohol | A | A | 0 |
| Ethyl Chromide | A | 0 | B |
| Ethyl Ether | A | 0 | A-B |
| Formaldehyde | A | A | A |
| Formic Acid | A | A | A |
| Freon, 11, 12, 22 | A | A | B-C |
| Gasoline | A | A | A |
| Glycerine | A | A | A |
| Hydrochloric Acid | A | A | A |
| Hydrochloric Acid (conc) | A | A | A |
| Hydrofluoric Acid | A | D | B |
| Hydrogen Peroxide | A | A | B |
| Hydrogen Peroxide (conc) | A | A | B |
| Hydrogen Sulfide | A | 0 | A-B |
| Kerosene | A | A | A |
| Methyl Alcohol | A | A | A |
| Methyl Ethyl Ketone (MEK) | A | A | A-B |
| Methylene Chloride | A | A | B |
| Naphtha | B | 0 | A |
| Nitric Acid | A | A | A |
| Nitric Acid (conc) | A | A-B | A-B |
| Nitrobenzene | A | A | A-B |
| Phenol | A | A | B |
| Pyridine | A | 0 | A |
| Silver Nitrate | A | A | B |
| Soap Solutions | A | A | A |
| Stearic Acid | A | A | 0 |
| Sulfuric Acid | A | A | A |
| Sulfuric Acid (conc) | A | A | A |
| Sulfurous Acid | A | 0 | A-B |
| Tannic Acid | A | 0 | A-B |
| Tanning Extracts | 0 | 0 | 0 |
| Tartaric Acid | A | 0 | B |
| Toluene | A | A | B |
| Trichlorethane | A | A | B |
| Trichloroethylene | A | A | B-C |
| Turpentine | A | A | A |
| Water | A | A | A |
| Xylene | A | A | B-C |
| Rating | Meaning |
|---|---|
| 0 | No data available |
| A | No effect, excellent |
| B | Minor effect, good |
| C | Moderate effect, fair |
| D | Severe effect, not recommended |
Related Documents: Specification PDF Download | Hamilton ML700 Brochure | ML700 Advanced User Manual | Hamilton ML700 Advanced and Premium User Manual | LyncStore 700 Manual
If you need any help choosing a model, please get in touch with one of our technical specialists on live chat or by calling 01702 555577.
