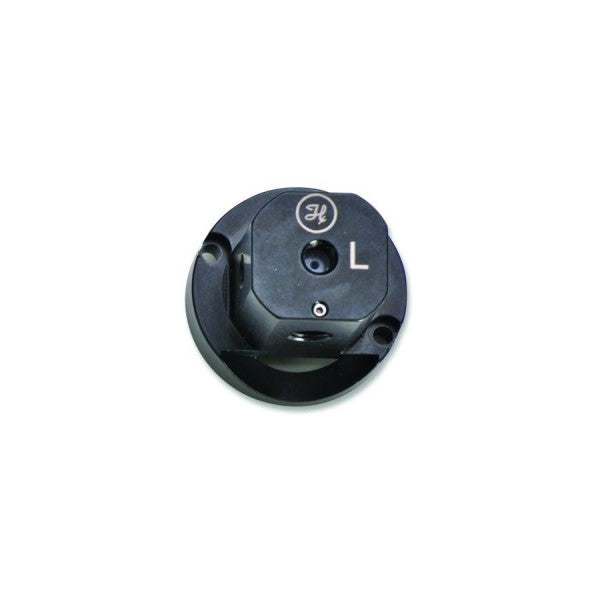

Hamilton ML600 Universal Valve Left
Please Login or Register to see price.Shipping calculated at checkout.
SKU:
The Microlab 600 Universal Valves are used on the Single Syringe Dispenser, Dual Syringe Diluter, Dual Syringe Dispenser and Continuous Dispenser. Adjust the Cross Tube and Valve Plugs to achieve the desired application
Specifications
| Valve Model Description | Microlab 600 Universal Valve Left |
|---|---|
| Fluid Path | PTFE/CTFE |
| Nominal Port Diameter | 0.059 inch (1.5 mm) |
| Housing Material | PEEK |
| Actuated | All Microlab 600 instruments |
| Break Away Torque | 65 in oz. (455 mNm) |
| Panel Mounting | No |
| Threaded Connection | ¼-28 |
| Operating Temp High | 38 °C (100 °F) |
| Operating Temp Low | -12 °C (10 °F) |
| Operating Pressure | 0 to 100 psig (0 to 6.9 bar) |
| Storage Temp High | 38 °C (100 °F) |
| Storage Temp Low | -18 °C (0 °F) |
