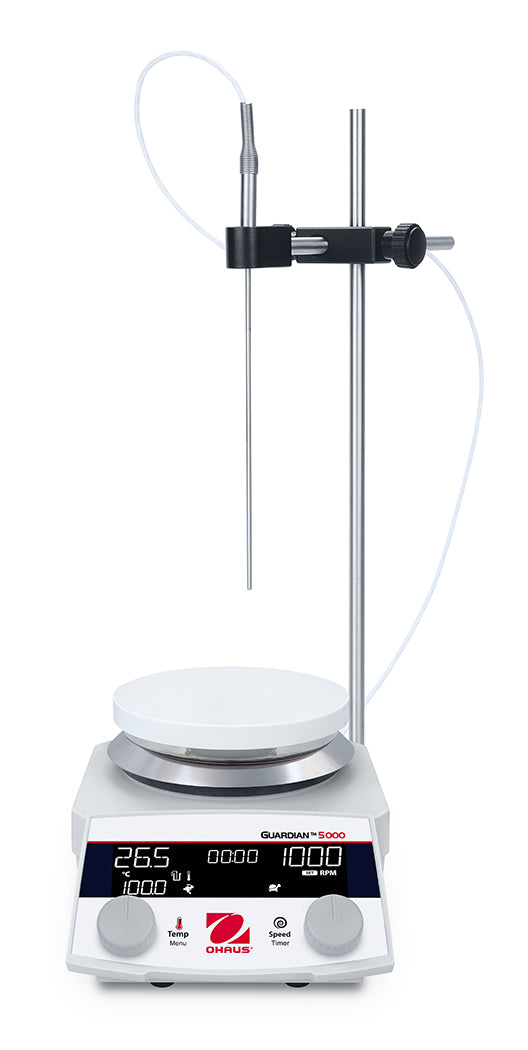

Expertly Engineered Hotplate Stirrers with Premium Safety and Versatility Features for Everyday Use

The Next Generation Guardian 5000TM Hotplate Stirrers are engineered for safety and versatility across research, academic and industrial settings. They offer powerful heating and mixing, with premium hardware and software to support diverse users safely and reliably. Heating models reach up to 550°C and feature 3 temperature control modes for quick heating or precise heating without overshoot. Select from 5 models with 3 plate sizes.

Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling.

Our signature SafetyHeat™ and SmartHeat™ features combined with the new Run Dry Protection system* plus the Time Run mode and the optional Splash Shield provide complete safety.

Languages: English (US); French; German; Italian; Polish; Spanish

Display: Backlit LCD display with white characters, integrated heating/stirring status indicators in green and a prominent hot top indicator in yellow

Operation: 100-120 VAC or 220-240VAC 50/60Hz power entry, rotary switch knob(s) control.

Communication: RS232 for data logging and remote control

Construction: Robust full metal housing, ceramic square top plate or ceramic-coated aluminum round top plate, high performance SmCo magnet

Capacity: 20L

Calibration: Temperature Calibration 3 Plate/3 Probe

Function: Heating and Stirring

Speed: 50 rpm – 1800 rpm

Timer: 1 minute - 99 hours, 59 minutes

Gross Weight: 4.8 KG

Net Weight: 2.6 KG

Width: 29 CM

Height: 21.5 CM

Length: 51 CM

Volume: 0.032 M3
