Ohaus Hotplate-Stirrer e-G71HSRDM 230V EU


NEED HELP WITH THIS PRODUCT?

ASK OUR EXPERTS
Ohaus / Hotplates & Stirrers

Hotplate-Stirrer e-G71HSRDM 230V EU

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 30500623

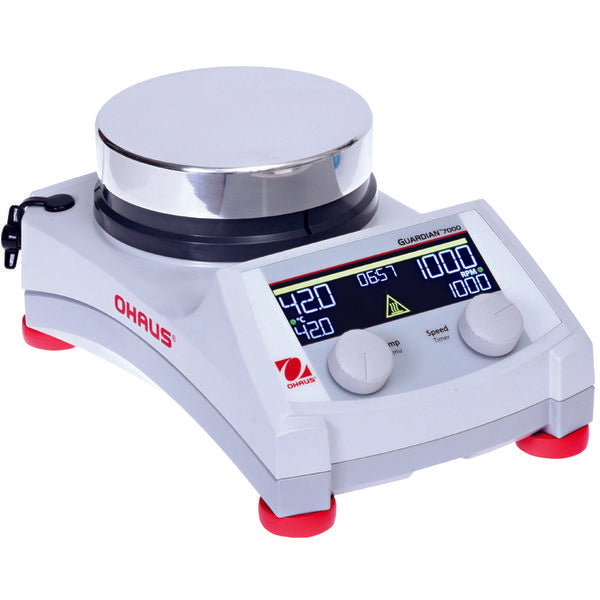

Hotplate-Stirrer e-G71HSRDM 230V EU

OHAUS Guardian 7000 Hotplate Stirrers are designed with outstanding safety features and superior heating and mixing performance. The SmartHousing™ is chemical resistant with an innovative, easy-to-clean design that channels spills away from internal components and the angled glass control panel. The bright LCD display includes intuitive icons as well as temperature, speed and time settings – all designed to monitor performance from across the lab.
Durable Hotplate Stirrers with Superior Safety Features and Intelligent Performance.
Protect your lab with SmartPresence™ and SmartLink™ technologies. These exclusive features automatically shut off the heater if no one is detected after a user-defined ''time out'' period has elapsed.
An industry-leading early detection system that uses two independent safety controls to continuously monitor the electronics and shut off heating before an overtemperature condition occurs.
Precise stirring from 60 to 1600 rpm is made possible by the design of a powerful motor, strong magnet and software controlled ramp rate, ensuring secure magnetic coupling for viscous applications.

Product Specifications

  • Part #:

    30500623

  • Family Name:

    Guardian 7000 Hotplate Stirrers

  • Display:

    Backlit LCD Display for temperature, speed and time, green indicator lights when unit is heating and stirring, two prominent hot top indicator lights, icons for SmartRate™, SmartHeat™, SmartPresence™, SmartLink™, probe in use, Single Point Calibration

  • Applications:

    Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling

  • Construction:

    Probe connection, SmartHousing™ stays cool to the touch and is chemical-resistant, IP21 Ingress Protection, hardened glass front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy-to-clean ceramic or aluminum tops

  • Design Features:

    Hot top indicator lights, audible alarm, SmartHeat™ temperature limiting function, SafetyHeat™ shuts off heater in the event of malfunction, temperature calibration feature for 5 probe & 5 plate setpoints, temperature priority function, SmartRate™ functions

  • Communication:

    USB port provides flexibility for programming of repeat applications and enhancing safety with SmartLink™ technology; the long range user detection function operated with the OHAUS Bluetooth dongle accessory (sold separately)

  • Operation:

    Timer, Stirring from 60 to 1600 rpm, temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), 8” (20.3 cm) stainless steel RTD temperature probe, 1.5” (3.8 cm) PTFE coated stir bar, in-use cover

  • Model No:

    e-G71HSRDM

  • Capacity:

    20 L

  • Plate Construction:

    Aluminum

  • Plate Size:

    5.3 in (135 mm)

  • Temperature Range:

    Ambient + 5°C – 380°C

  • Speed Range:

    60 rpm ; 1,600 rpm

  • Dimensions:

    10.5 in x 5 in x 6.8 in (267 mm x 126 mm x 173 mm) (LxHxW)

  • Speed Range:

    60 to 1600 rpm

  • Working Environment:

    41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80% RH, Non-condensing)
