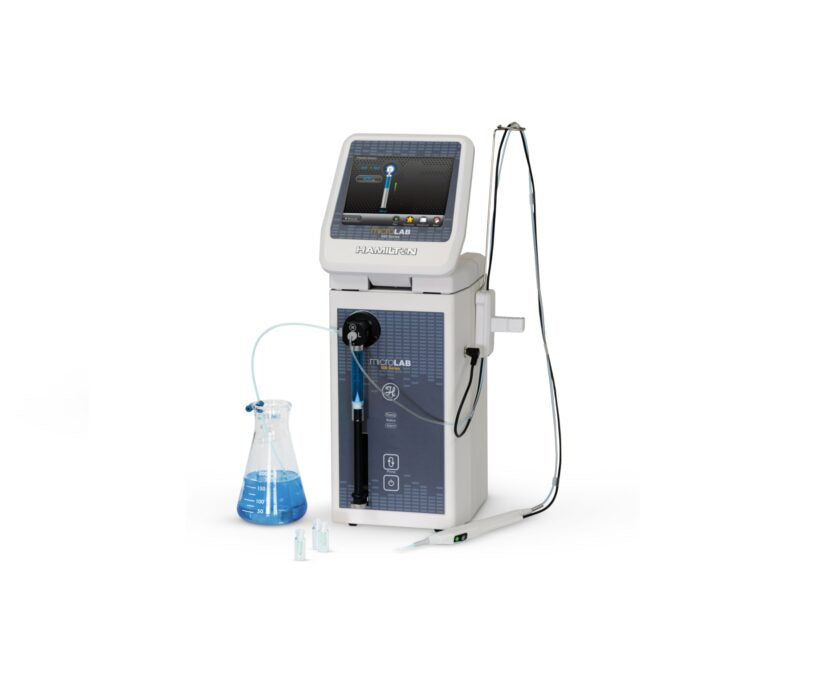

Enjoy hassle-free liquid handling with the Hamilton Microlab 620 Advanced Single Syringe Dispenser. Shipped complete with Concorde Hand Probe, Universal Valves, Fill/Dispense Tubing, Accessory Holder, Country Specific Power Cord.
Microlab 620 Specifications
| Accuracy: | +/- 1% |
| Precision: | +/- 0.2% |
| Flow Rate: | 0.003 - 6000 µL/second (depending on the syringe that is selected) |
| Syringe Resolution: | 0.02% of the nominal syringe volume |
| Compatible Syringes: | 10, 25, 50, 100, 250, 500 µL, 1, 2.5, 5, 10, 25, and 50 mL |
| Fluid Path: | Borosilicate, PTFE, CTFE |
| Communication Type: | Ethernet, 10/100 BASE-T |
| Communication Protocol: | .NET 2.0 Application Programming Interface (API) |
| Pump Memory: | One method stored in non volatile memory |
| Calibration: | Factory tested and traceable to N.I.S.T. standards |
| Certifications: | CE, CSA |
| Power Rating: | 24 VDC, 2.5A |
| Dimensions: | 7 x 5.5 x 10.5 inch (177.8 x 139.7 x 266.7 mm) |
| Weight: | 13 lbs (5.9 kg) |
Advanced Controller Specifications
| Screen Size: | 5.7 inch (15cm diagonal) |
| Tilt Positions: | 5 positions from 90° to flat |
| Screen Resolution: | 640 (H) x 480 (V) pixels |
| Mounting Options: | On top of the Syringe Pump, Bench Top, or Wall Mount |
| Program Memory: | 2 GB (With Advanced Upgrade) |
| Communication Type: | Ethernet, 10/100 BASE-T |
| Power Rating: | 24VDC, 2.5A |
| Dimensions: | 2.25 x 6.5 x 7 inch (57.2 x 165.1 x 177.8mm) |
| Weight: | 1.9 lbs (0.86 kg) |
