Applications

Connections (Data Interface)

Dimensions

• Weighing Chamber Height: None
• Weighing Pan Dimensions: 182 x 182 mm

Features

• Adjustment: Internal
• Anti-Theft Locking Device: Kensington Lock, lockdown capability for cable or chain
• Languages: English, German, France, Italian, Spanish, Portuguese, Russian, Polish
• Leveling: Manual
• Readability: 10 mg
• Repeatability: 10 mg
• Typical Stabilization Time: ≤0.9 s
• Underfloor Weighing: Yes

General Specifications

• Draft Shield: None
• External Calibration Weight: 1 kg | F1
• Linearity: 20 mg
• Sensitivity Drift between +10 °C and +30 °C: ±3.5 ppm/K
• Weighing Units: Gram, kilogram, carat, pound, ounce, troy ounce, Hong Kong tael, Singapore tael, Taiwan tael, grain, pennyweights, milligram, parts per pound, China tael, mommes, Austrian carat, tola, baht, mesghal and Newton

Operating Conditions

• Maximum Weighing Capacity: 1,200 g
• Operating Conditions - Temperature: +10 – +30 °C

Power Requirements

• Power Requirements: 100 – 240 VAC, ±10%, 50 – 60 Hz, 0.2 A
• Power Requirements (Secondary): 15 VDC, ±5%, 0.53 A

Product Information

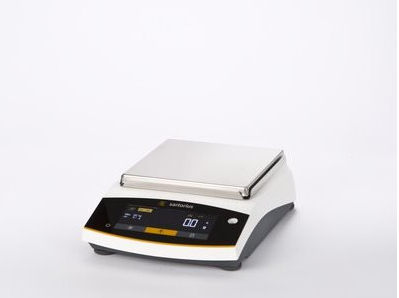

• Brand: Entris® II
• Product Line: Entris® II Essential Line
