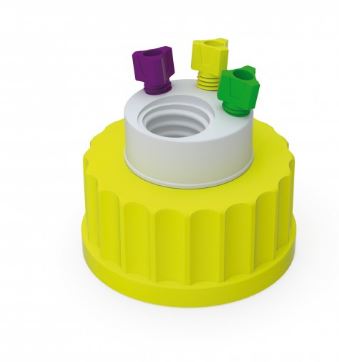

Waste Cap GL45 (3x UNF 1/4, 1x GL 14) Screw cap GL 45 made of PPS yellow, insert made of PTFE with 3 capillary connections (UNF 1/4) and 1 connection for exhaust filter (GL14). Including fittings made of PFA (3x green for tubing O.D. 1,6 mm, 3x purple for tubing O.D. 2,2 mm, 3x yellow for tubing O.D. 3,2 mm, UNF 1/4"), 2 blind fittings (PFA-milky-white).

Applications
Safe collection of solvents without leakage of harmful solvent vapours. With b.safe Fittings made of PFA, tubes can easily be inserted in the waste container, the conical seal cone clamps the tubing and seals the connection safely. For collecting large amounts of liquids, also tubings with ID 6,4-9 mm can be connected. Solvent vapours from the escaping air during filling are restrained by the Exhaust Filter containing activated carbon. The service life of the filter can be easily monitored through either activating the display on the lid and exchanging the filter in case of completely red colouring or documentation of the exchange date by hand.
