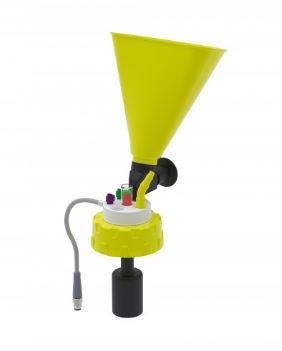

Waste Cap S60 El. Fill-Level Control/Filling Funnel (2x UNF1/4, 1x GL14, 1x NPT1/8") Cap S60 made of PP, insert made of PTFE with permanently mounted cable (approx. 400 mm), sight glass and indicator pin, 2 capillary connectors (UNF 1/4), 1 connector for tubing I. D. 5.5-8.0 mm (NPT 1/8"), 1 connector for Exhaust Filter (GL14, not included). Accessories: Fittings made of PFA (2x green for tubing O. D. 1,6 mm, 2x purple for tubing O. D. 2,2 mm and 2x yellow for tubing O. D. 3,2 mm), 1 Blind Fitting (PFA), 1 bent hose connector for tubing I. D. 5.5-8.0 mm (PP yellow), 1x Filling Funnel with stopcock automatic (PP yellow).

Applications
To avoid spill over of canisters through the connection of a Waste Cap to a b.safe Display for electronic level control. The filling levels of waste containers in laboratory cupboards and workbenches can be reliably monitored. Additionally, you can use all benefits of b.safe Caps such as the connection of capillaries through b.safe Fittings and tubing with the appropriate hose connectors. Solvent vapours from the escaping air during filling are restrained from the Exhaust Filter with active carbon filling. To connect corrugated tubing with I. D. 6.5 or 8.5 mm at the tubing connector (NPT 1/8” thread), just use the appropriate b.safe Corrugated Tubing Coupling M 514.
