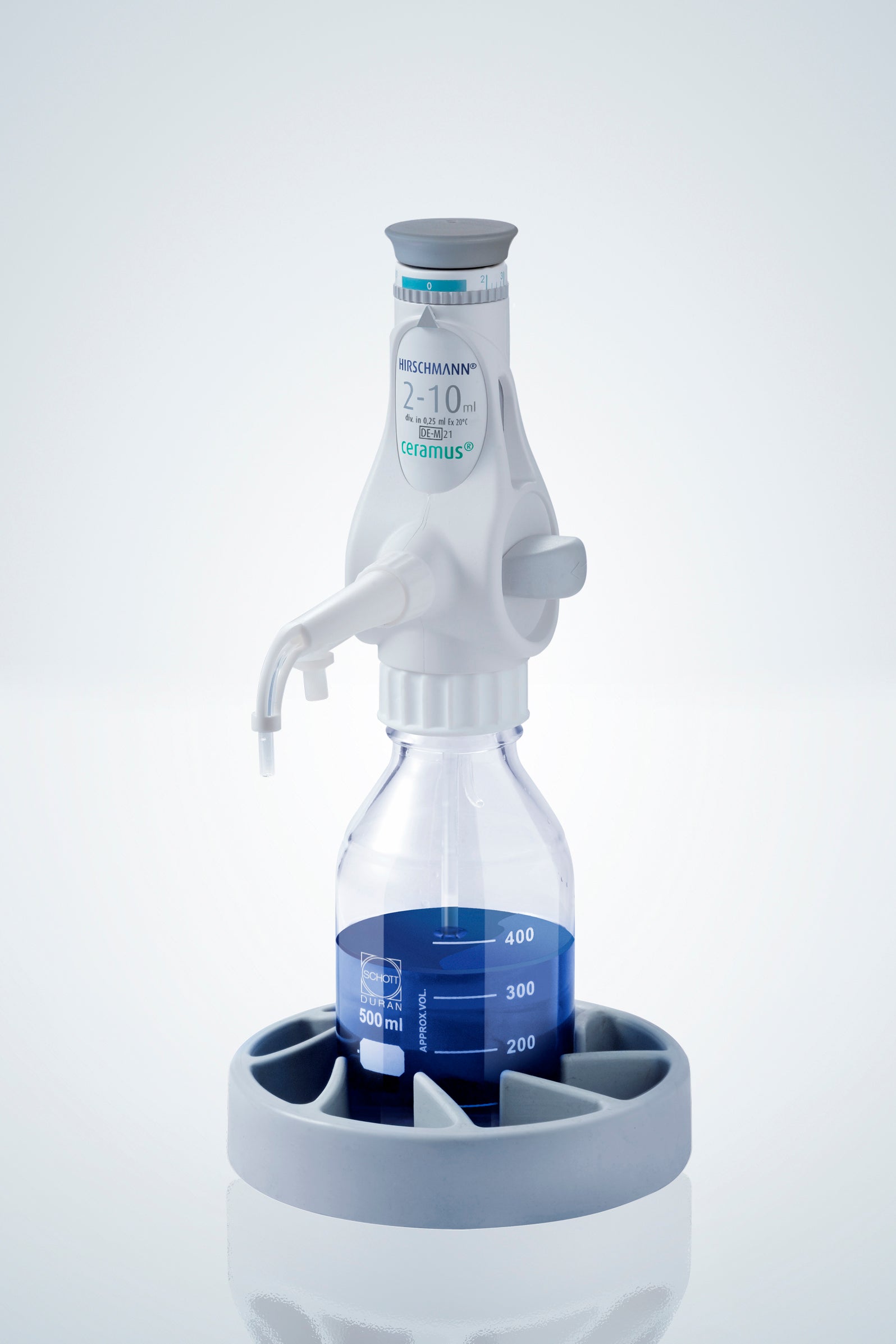

ceramus®
A dispenser with a reagent recirculation system for manual dispensing directly from the reagent bottle. Available in six different volumes.
Uncompromising reliability - years of experience gained by Hirschmann in liquid handling are reflected in the perfection embodied in ceramus® and absolute attention to detail. The graduation gauge and digital volume configuration engagement guarantee consistent precision and volume dispensing and ensure reproducible results – absolutely independent of the user. The dispensing piston made of high-purity aluminium oxide ceramic and the DURAN® glass cylinder guarantee a maximum level of chemical and thermal resistance. The high-quality materials in all parts conveying medium enable use within a temperature range from 4° C to 50° C. The complete unit can be steam sterilised at 121° C without dismantling.
A special HF version designed for dispensing very aggressive media is also available. The piston and cylinder are made of high-purity aluminium oxide ceramic, the valve seats and balls are ceramic and valve springs are made of platinum / iridium.
Overview of details:
- Piston made of high-purity aluminium oxide ceramic
- For fixed and variable volumes, from 0.2 mL to 60 mL
- The complete unit can be steam sterilised at 121° C without dismantling
- Free rotation
- Media recirculating system for simple and rapid venting without reagent loss
- User-independent, reproducible volume dispensing
- Digital volume configuration engagement, calibrated for a lifetime
- Robust ejection unit
- Threaded suction hose fitting
- Optimum chemical and thermal resistance of parts conveying medium
- Individual quality certificate with conformity certificate
Dispenser Ceramus®, 2 - 10 ml, universal usable bottle top dispenser with ceramic piston, with reagent recirculation system, digital volume setting in various steps, with Hastelloy spring, autoclavable at 121°C, complete with thread A 45 mm, 3 thread adapters (A 32, S 40 und A 38), 1 screw-coupled suction tube, 1 discharge tube unit complete, with individual serial number and test certificate, with declaration of conformity acc. to DIN 12600.
Accessories
- Adapter with filling tube NS 12/21 for funnel
- Bottle holder, grey
- Amber glass bottles
- Discharge tube unit, dispenser ceramus®, opus® dos, akku-drive® dos with recirculation
- Discharge tube unit, titration, opus® solarus®, akku-drive® with recirculation
- Discharge valve, ceramus®, solarus®, opus®, ceramus® classic for 30+60 ml, EM dispenser for 10-60 ml, akku-drive®
- Double sleeve, stainless steel
- Fitting wrench for valves
- Recirculation hose
- Recirculation valve
- Round filter set with plug connection on one side
- Base for separate media supply
- Stand clip, stainless steel for opus®, solarus®, ceramus®
- Stand, stainless steel, 500 mm long
- Suction hose, ceramus®, opus®, solarus® and akku-drive® with recirculation
- Suction valve, ceramus®, solarus®, opus®, ceramus® classic for 30 + 60 ml, EM dispenser for 10-60 ml akku drive®
- Threaded adapter, opus®, solarus®, ceramus®, akku-drive® with recirculation
