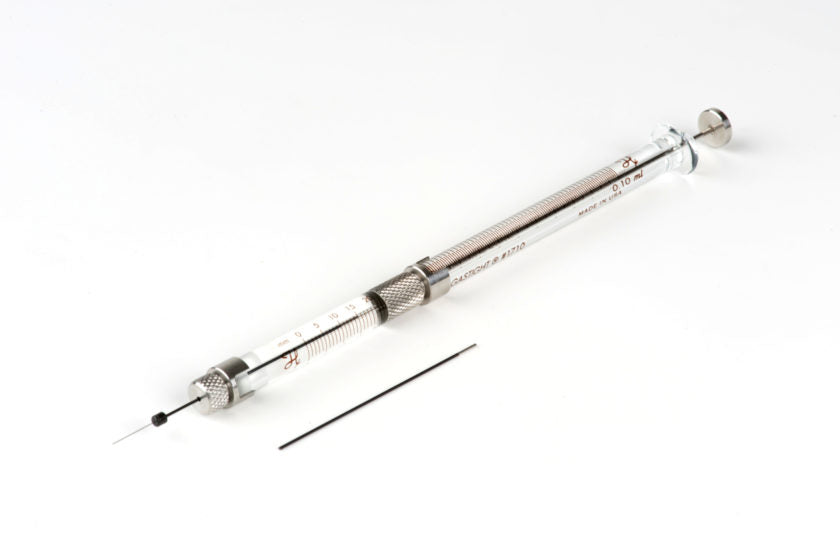

Hamilton 10 µL Neuros Syringe, 33 gauge, Point Style 4
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 65460-06
Hamilton Neuros syringe technology provides unprecedented functionality for controlled animal injections. The Neuros accurately dispenses volumes between 50 nL and 100 μL through an ultrafine needle. Developed specifically for neuroscience applications, the Neuros enables the delivery of microvolumes to an exact location while minimizing injection site damage.
| Volume | 10 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Neuros |
| Needle | Small RN |
| Gauge | 33 gauge |
| Point Style | 4 |
| Needle Length | 0 - 20 mm adjustable |
| Fluid Path | SST, borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Temperature | 115°C / 239°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.018 inches (0.460 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.004 inches (0.108 mm) |
| Needle Outer Diameter | 0.008 inches (0.210 mm) |
| Std Needle Dead Volume | 0.79 µL |
| Sales Quantity | 1 syringe per pack |
