Hamilton 1025 SL 25mL Syr (22/51/2)

Please Login or Register to see price.
SKU: 86326

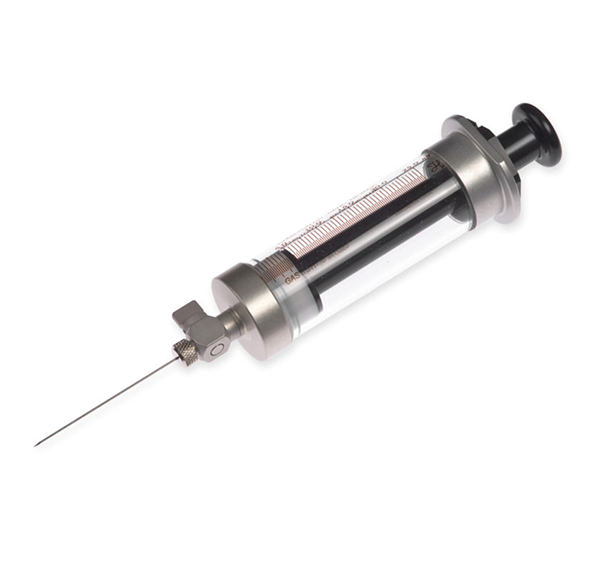

Hamilton 1025 SL 25mL Syr (22/51/2)

The Hamilton SampleLock syringes allow you to collect, store, transport and analyze liquid or gaseous samples without the danger of evaporative loss or environmental contamination. Syringes are available in sizes ranging from 50 μL to 100 mL. An easy-to-use twist valve and a positive rear stop on SampleLock prevents loss of sample and plunger blowout. Optional male luer and female luer lock adapter threads on the SampleLock valve making the syringes compatible with a multitude of connectors and fittings.

Volume 25 mL
Syringe Type Gastight
Syringe Series 1000
Termination Sample Lock (SL)
Needle Large RN
Gauge 22 gauge
Point Style 2
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 100 psig (6.9 bar)
Maximum Temperature 80°C / 176°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.907 inches (23.0 mm)
Barrel Outer Diameter 1.07 inches (27.1 mm)
Needle Inner Diameter 0.0161 inches (0.41 mm)
Needle Outer Diameter 0.0283 inches (0.72 mm)
Std Needle Dead Volume 6.81 µL
Sales Quantity 1 syringe per pack
