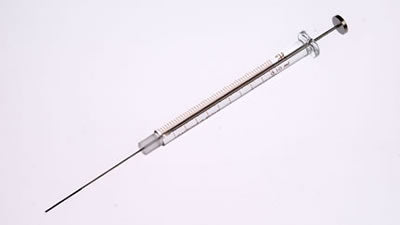

The needles on Thin Layer Chromatography (TLC) syringes are coated from the point for 3/4” with a PTFE-coating. The coating reduces the surface tension between the needle and the liquid making it ideal for reproducible sample spotting. The TLC syringe is available as a cemented needle (SNTLC) or as a replacement needle to be installed into a standard removable needle (RN) syringe.
| Volume | 100 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 22 gauge |
| Point Style | 3T |
| Needle Length | 2 inch (51 mm) |
| Fluid Path | SST, borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Temperature | 50°C / 122°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.057 inches (1.46 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0161 inches (0.41 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 6.81 µL |
| Sales Quantity | 1 syringe per pack |
