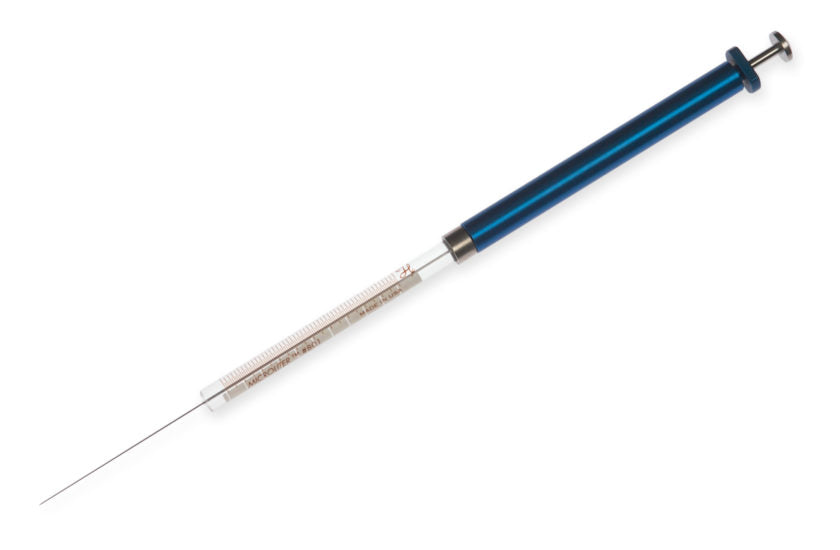

The 800 series syringes are the reinforced plunger version of the original 700 series syringes. Attached to the flange of the syringe is a blue Syringe Holder. The Syringe Holder provides a spot to hold the syringe that will not heat up the barrel causing dispense inaccuracies. Additionally it provides support to small volume plungers that are prone to bending during injection. This series of syringes is ideal for dispensing volumes from 0.5 μL up to 250 μL. A variety of different terminations and needle options are available in this series.
| Volume | 5 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 800 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 26s gauge |
| Point Style | 2 |
| Needle Length | 2 inch (51 mm) |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Temperature | 50°C / 122°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.014 inches (0.343 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.005 inches (0.13 mm) |
| Needle Outer Diameter | 0.0187 inches (0.47 mm) |
| Std Needle Dead Volume | 0.64 µL |
| Sales Quantity | 1 syringe per pack |
