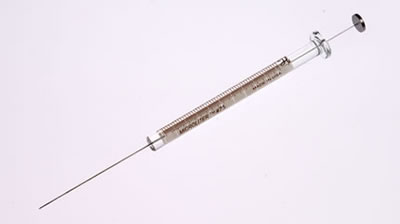

The 700 series syringe is the original hand-fitted Hamilton syringe. This series of syringes is ideal for dispensing volumes from 0.5uL up to 500uL. A variety of different terminations and needle options are available in this series.
| Volume | 5 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 26s gauge |
| Point Style | 2 |
| Needle Length | 2 inch (51 mm) |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Temperature | 50°C / 122°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.014 inches (0.343 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.005 inches (0.13 mm) |
| Needle Outer Diameter | 0.019 inches (0.483 mm) |
| Std Needle Dead Volume | 0.64 µL |
| Sales Quantity | 1 syringe per pack |
