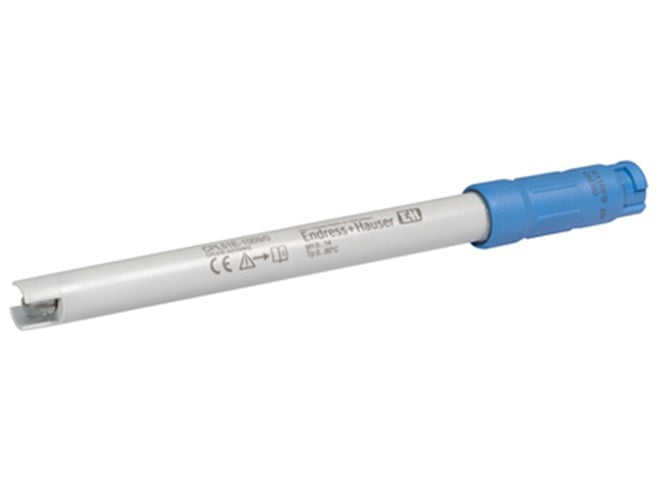

Digital pH sensor Memosens CPL51E
Robust Memosens 2.0 pH sensor for laboratory measurement and random sampling in the field
All Memosens calibration and operation information are stored in a chip in the sensor head, Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection.
Field of application
With its robust plastic shaft and contactless inductive Memosens cable connection, Memosens CPL51E is made for random sampling directly in the field or in the laboratory. The sensor comes pre-calibrated and is directly ready for use. Ideally to be used in combination with the mobile handheld Liquiline Mobile CML18 without any additional settings.
Memosens CPL51E is suited for the following applications in drinking water, wastewater and process water::
-
Check of on-line measuring loops
-
Analysis of grab samples (on-site as well as in the laboratory)
-
pH measurement at process points where no online measurement is installed
Benefits
-
The inductive Memosens sensor connection is insensitive to moisture and corrosion.
-
Suitable for use in the laboratory or in the field to check your running process. A physical protection keeps the glass membrane safe in both environments.
-
Automatic temperature compensation thanks to integrated temperature sensor.
-
Fast response time even in cold ionweak water.
-
Reference system with open aperture minimizes the risk of clogging.
-
Supports the requirements of quality management with tamper-proof stored information such as serial number or calibration history
Product Specifications
-
Measuring principle:
Potentiometric
-
Application:
Measurements in drinking water, wastewater and process water
-
Characteristic:
Digital Memosens 2.0 pH sensor for laboratory measurements and random sampling in the field Robust pH sensor with plastic shaft
-
Measurement range:
pH 0 to 14 (1 to 12 application range)
-
Material:
Glass and polymer
-
Dimension:
Diameter: 12 mm (0.47 inch)
Shaft length: 120 mm (4.72 inch) -
Process temperature:
-5 to 80 °C (23 to 176 °F)
-
Process pressure:
1 bar, not intended for continues measurment in process
-
Temperature sensor:
NTC 30kΩ
-
Connection:
Inductive, digital Connection head with Memosens technology
-
Ingres protection:
IP68
