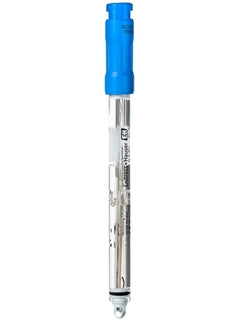

Digital pH sensor Memosens CPL57E
Memosens 2.0 pH sensor for laboratory measurement and random sampling in pure and ultrapure water
All Memosens calibration and operation information are stored in a chip in the sensor head, Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection.
Field of application
The pH sensor Memosens CPL57E is specially designed for pure water applications in all type of industries. The glass sensor offers long-term stability, thanks to the additional salt storage, and ensures highly accurate measured values in pure water.
Memosens CPL57E is suited for:
-
Check of on-line measuring loops
-
Analysis of grab samples (on-site as well as in the laboratory)
-
Measurement at process points where regular checks are recommended
In the following applications:.
-
Boiler feed water
-
Pure water
-
Water with low ionic strength
Benefits
-
Time-saving random sampling with pre-calibrated sensor which allows fast and easy switches of sensors
-
Easy handling with Memosens 2.0 bayonet connector
-
Supports the requirements of quality management with tamper-proof data storage including serial number and calibration history
-
Maintenance-free pH electrode without the need to refill electrolyte
-
Temperature compensation with integrated temperature sensor
Product Specifications
-
Measuring principle:
Potentiometric
-
Application:
Measurements in low-conductivity media, such as boiler feedwater, pure and ultrapure water
-
Characteristic:
Digital Memosens 2.0 compact gel pH glass sensor for laboratory measurements and random sampling Reference system with salt storage for drift-free measurement in low-conductivity media
-
Measurement range:
pH 0 to 14 (1 to 12 application range)
-
Material:
Glass
-
Dimension:
Diameter: 12 mm (0.47 inch)
Shaft length: 120 mm (4.72 inch) -
Process temperature:
–5 to 100 °C (23 to 212 °F) (0 to 80 °C (32 to 176 °F) application range)
-
Process pressure:
1 bar, not intended for continues measurment in process
-
Temperature sensor:
NTC 30kΩ
-
Connection:
Inductive, digital connection head with Memosens 2.0 technology
-
Ingres protection:
IP68
