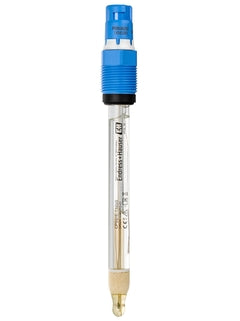

Digital pH sensor Memosens CPS61E
Memosens 2.0 glass sensor for the food & beverage industry and for bioreactors in biotech industry
All Memosens calibration and operation information are stored in a chip in the sensor head, Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection.
Field of application
Keep the pH value in the optimum range and maximize your product yield with Memosens CPS61E. Its rugged design and long-term stability ensure extremely accurate and reproducible measured values even after CIP/SIP or autoclaving. CPS61E features Memosens 2.0 digital technology, offering extended storage of calibration and process data for predictive maintenance. The sensor resists moisture and enables lab calibration, enhancing process integrity and increasing process uptime.
Memosens CPS61E measures pH in:
-
Biotech and pharma industries
- Bioreactors/fermenters: process control in enzyme production
- Bioreactors/fermenters: control of culture growth -
Food & Beverage
- CIP/SIP applications
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
A pharma certificate of compliance with sensor serial number specified is available.
Benefits
-
Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
-
The sensor's exceptional accuracy and reproducibility help you to keep the pH value in the optimum range for a maximized product yield.
-
A special glass membrane and reference system makes the sensor CIP/SIP and autoclaving resistant (up to 140°C/284°F) offering maximum long-term stability.
-
The sensor protects your product quality with its certified biocompatibility according to USP class VI, FDA compliance of wetted parts, VO 1935/2004 compliance, no cytotoxicity, bioreactivity or animal-based materials.
-
Streamline maintenance of CPS61E with the Memobase Plus software that automatically stores and documents all relevant sensor and process data.
-
Maximum process safety through non-contact, inductive signal transmission
-
Reduced operating costs thanks to minimized process downtime and extended sensor lifetime.
Product Specifications
-
Measuring principle:
Potentiometric
-
Application:
Hygienic and sterile applications (sterilizable, autoclavable):
• Bioreactor/fermenter
• Biotechnology
• Pharmaceutical industry
• Foods -
Characteristic:
Digital pH electrodes for hygienic production processes with ion trap for long-term stable reference
-
Measurement range:
pH: 0 to 14
-
Measuring principle:
Gel compact electrode with ceramic junction and ion trap
-
Design:
All shaft lengths with temperature sensor Advanced gel technology
-
Material:
Sensor shaft: Glass to suit process
pH membrane glass: Type N
Metal lead: Ag/AgCl
Open aperture: Ceramic junction, zirconium dioxide
O-ring: FKM
Process coupling: PPS fiber-glass reinforced
Nameplate: Ceramic metal oxide -
Dimension:
Diameter: 12 mm (0.47 inch)
Shaft lengths: 120, 225, 360 and 425 mm
(4.72, 8.86, 14.2 and 16.7 inch) -
Process temperature:
Application N:
0 to 100 °C (32 to 212 °F)
Up to 140 °C (284 °F) for sterilization -
Process pressure:
0.8 to 7 bar (11.6 to 101.5 psi) absolute
-
Temperature sensor:
NTC 30kΩ
-
Ex certification:
With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in hazardous areas Zone 0, Zone 1 and Zone 2.
-
Connection:
Inductive, contactless connection head with Memosens 2.0 technology
-
Ingres protection:
IP68
