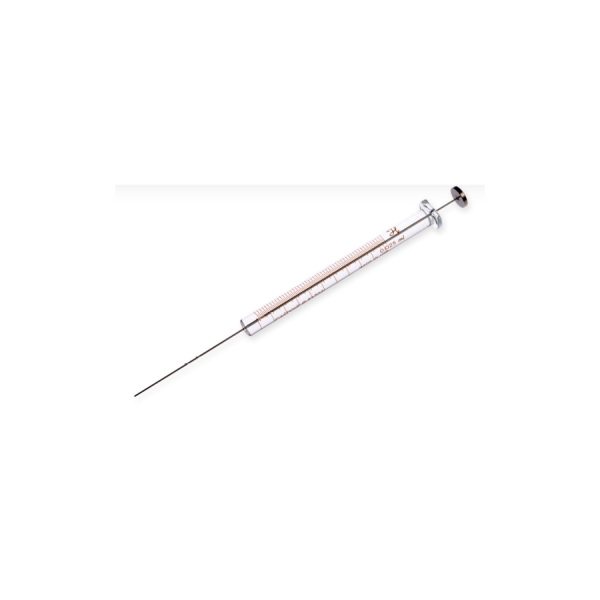

Hamilton 1702 N 25µL Syr (22s/51/2)

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 80200

In stock and available for immediate despatch

Split/splitless injection consists of a heated chamber with a glass liner into which the sample is injected through the septum. A microsyringe is used to inject the sample through a rubber septum into a flash vaporizer chamber at the head of the column. The sample vaporizes to form a mixture of carrier gas, vaporized solvent and vaporized analytes. In the split mode, only a proportion of this mixture reaches the column but most exits through the split outlet. This avoids overloading the column. In the splitless mode, the split vent is closed so that the vaporized analyte passes onto the column. This mode is more sensitive and adequate for trace analysis.
Volume 25 µL
Syringe Type Gastight
Syringe Series 1700
Termination Cemented Needle (N)
Needle Cemented Needle
Gauge 22s gauge
Point Style 2
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 1000 psig (68.9 bar)
Maximum Temperature 50°C / 122°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.029 inches (0.729 mm)
Barrel Outer Diameter 0.305 inches (7.75 mm)
Needle Inner Diameter 0.0059 inches (0.15 mm)
Needle Outer Diameter 0.0283 inches (0.72 mm)
Std Needle Dead Volume 1.13 µL
Sales Quantity 1 syringe per pack
