Compact photometer PF_12Plus

£1,250.00

Shipping calculated at checkout.

SKU: 919250

The photometer PF‑12Plus is a device tailored for the mobile water analysis. The icon based menu guidance and clear taskbar make the PF‑12Plus an easy to use photometer for all fields of water and wastewater analysis without the need for extensive training. The device comes in a rugged case equipped with useful accessories and is therefore particularly popular with users for the direct analysis at the point of sampling.

Safe

Easy handling for precise results
GLP‑conform storage of all measurement results
Comfortable data export and data backup concept

Mobile

Flexible power supply via batteries or accu-pack
Backlit graphic display also for critical lighting conditions
Robust and waterproof according to IP 68

Versatile

Compatible with NANOCOLOR and VISOCOLOR test kits
Nephelometric turbidity measurement and NTU‑check
Applicable in all fields of water and waste water analysis

Product Specifications

Type

Filter photometer with microprocessor control, self-test and auto-calibration
Light source

Xenon lamp
Optical system

Automatic filter wheel with 7 interference filters
Wavelength

345 nm / 436 nm / 470 nm / 540 nm / 585 nm / 620 nm / 690 nm plus 1 compartment for an additional filter; 860 nm LED for NTU measurement
Wavelength accuracy

± 2 nm, bandwidth at half transmission 10 nm–12 nm
Photometric range

± 3 E
Photometric accuracy

± 1 %
Long term stability

< 0.002 A/h
Measuring modes

More than 100 preprogrammed tests and special methods, absorbance, transmission, factor, standard, nephelometric turbidity measurement; 50 freely programmable methods
Preprogrammed tests

NANOCOLOR tube tests, VISOCOLOR ECO tests and Powder Pillows
Turbidity measurement

Nephelometric turbidity measurement at 860 nm (based on ISO 7027), 1–1000 NTU
Cuvette slot

Round tubes 16 mm OD
External light

Insensitive to external light, fast measurements without cuvette slot cover
Data memory

1000 results, GLP conform
Display

Backlit graphic display, 128 x 64 pixel
Auto off

Inactive or automatic shutdown after 5 min, 10 min, 15 min, 20 min, 60 min
Internal quality control

With NANOCONTROL NANOCHECK 2.0
Operation

Self-explanatory menu guidance, plastic foil keypad, test selection via parameter lists
Language

DE / EN / FR / ES / IT / NL / HU / PL / PT / CZ / ID / SL / TR / MY
Interfaces

USB 2.0
Update

Free via internet / PC
Operating range

10–40 °C, max. 80 % relative humidity (non-condensing)
Power supply

Via USB power supply, standard or rechargeable batteries or accu-pack
Housing

Shock-resistant; waterproof and dustproof, according to IP 68
Dimensions

215 x 100 x 65 mm
Weight

0.7 kg
Warranty

2 Years
CE certified

Yes
Scope of delivery

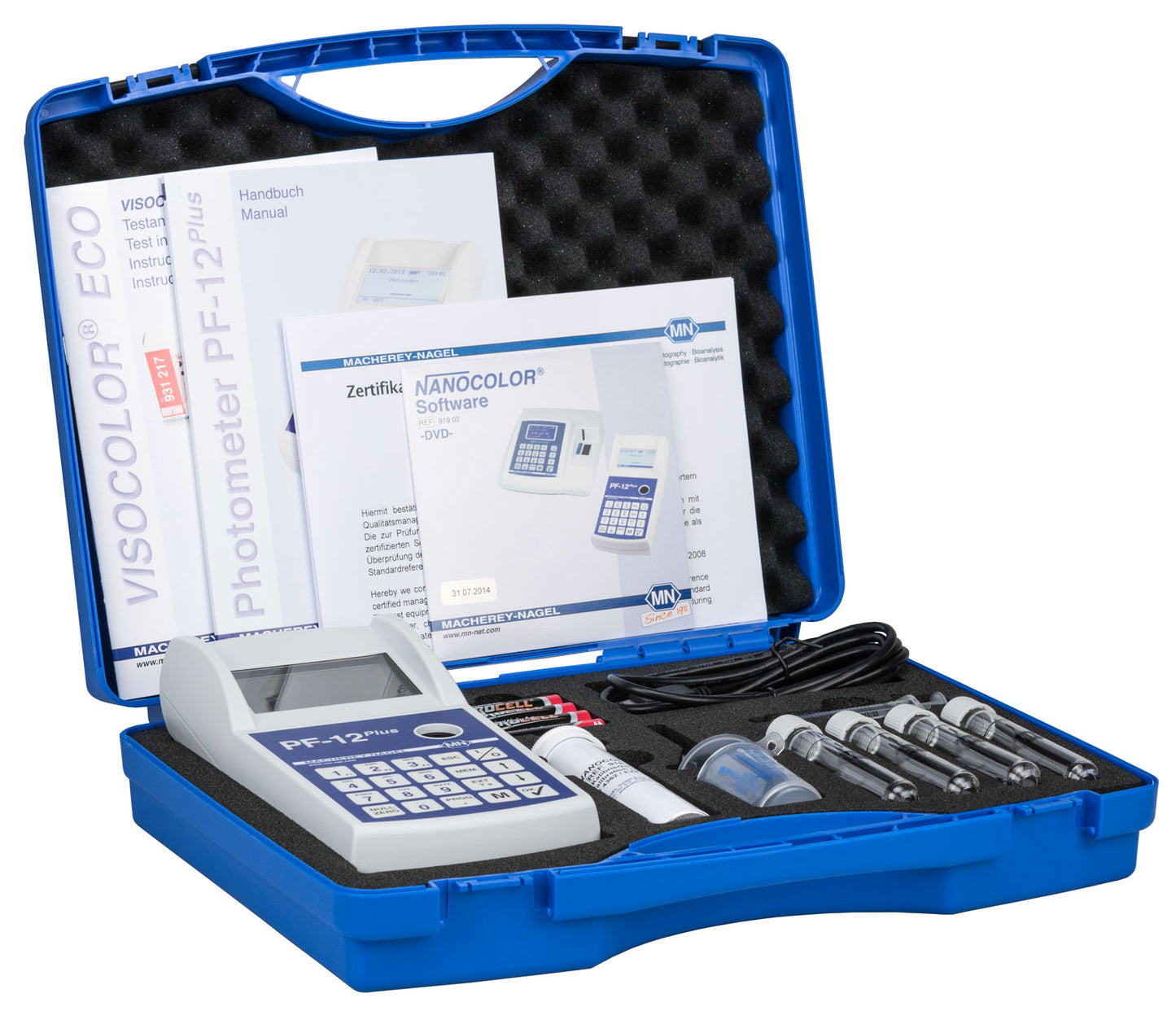

Photometer, software DVD, manual, VISOCOLOR ECO test instructions, 4 batteries, 4 empty test tubes, funnel, beaker, syringe, USB cable, calibration cuvette, cleaning cloth and certificate in rugged case
Hazardous material

No

Download Safety Data Sheet

Download Product Flyer

Turbidity measurements

With its especially positioned 860 nm LED the PF‑12Plus enables nephelometric turbidity measurements (NTU) in the range of 1–1000 NTU. Therefore, disturbing turbidities will be detected reliably in parallel to a measurement of tube tests – a huge PLUS onmeasurement safety. Furthermore, the PF‑12Plus offers the possibility to accurately determine the turbidity in transmitted light from 4–350 FAU.

Easy implementation

Measurement results are obtained very quickly with the PF‑12Plus, thanks to its simple operation. Equipped with more than 100 preprogrammed methods, it is the ideal companion for analysis on the road. The PF‑12Plus comes with easy to understand pictogram instructions in a practical manual for the evaluation of VISOCOLOR ECO test kits.

Free programming

In addition to the preprogrammed methods, the PF‑12Plus offers the possibility to create up to 50 special methods for customized applications. Equations up to 4th degree and logarithmic functions can be programmed systematically.
