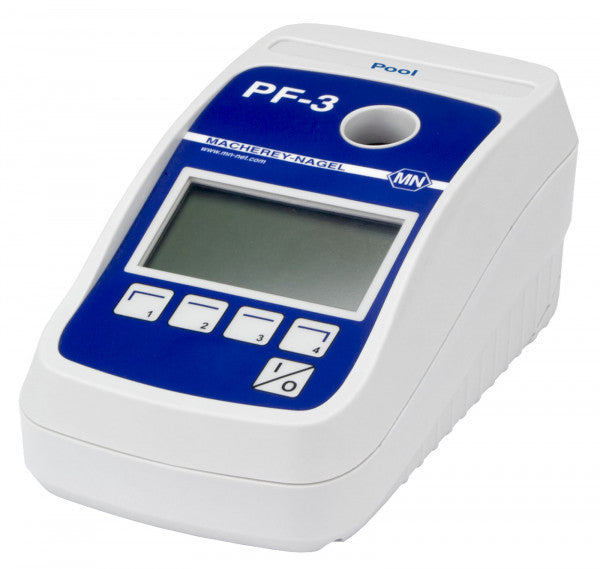

The compact photometer PF‑3 Pool is the smallest member of the MACHEREY‑NAGEL photometer family. The Pool version is especially designed for the need of pool analysis. It supports measurements of Total alkalinity, Cyanuric acid, pH and Chlorine. The handy and compact but strong design makes this lightweight an ideal companion for mobile analysis.
The device completes our product portfolio and perfectly fits our tradition of reliability, user friendliness and innovation.
The instrument comes in multiple versions, equipped with three LEDs and interference filters, designed to meet the analysis requirements of specific applications.
Together with the approved VISOCOLOR ECO test kits, brandnew VISOCOLOR Powder Pillows and high quality NANOCOLOR tube tests from MACHEREY‑NAGEL, the PF‑3 is perfectly suited for mobile analysis directly at the place of sampling.
Optionally, the device comes in a practical case with pre-equipped test kits, in a cardboard box or in an empty case for the individual combination with our VISOCOLOR ECO test kits.
Product Specifications
-
TypeLED photometer with microprocessor control, self-test and auto calibration
-
Light sourceLED
-
Optical systemLED + interference filters
-
Wavelength365 nm / 450 nm / 595 nm
-
Wavelength accuracy± 2 nm, bandwidth at half transmission 10 nm–12 nm
-
Preprogrammed testsNANOCOLOR tube tests
-
Cuvette slotRound tubes 16 mm OD
-
External lightInsensitive to external light, fast measurements without cuvette slot cover
-
Data memory50 measurements
-
DisplayBacklit graphic display, 128 x 64 pixel
-
Auto offInactive or automatic shutdown after 5 min, 10 min, 15 min, 20 min
-
Internal quality controlWith NANOCONTROL NANOCHECK 2.0
-
OperationSelf-explanatory menu guidance, plastic foil keypad, test selection via parameter lists
-
LanguageDE / EN / FR / ES / IT / HU / PL / PT / TR
-
InterfacesMini-USB
-
UpdateFree via internet / PC
-
Operating range10–40 °C, max. 80 % relative humidity (non-condensing)
-
Power supply3 AA batteries, rechargeable USB interface; optional internal accu-pack
-
HousingShock-resistant; waterproof and dustproof, according to IP 68
-
Dimensions170 x 95 68 mm
-
Weight0.5 kg
-
Warranty2 Years
-
CE certifiedYes
-
Scope of deliveryPhotometer, manual, batteries and certificate
-
Hazardous materialNo
Simple
- Intuitive operation with only four keys
- Flat menu structure
- Bright display for safe readings
Robust
- Glass fiber reinforced housing for extreme durability
- Water- and dustproof according to IP 68
- Shock-resistant optics
Flexible
- Various case solutions including reagents
- Additional parameters available f.o.c.
- Compatible with VISOCOLOR ECO tests, VISOCOLOR Powder Pillows and NANOCOLOR tests
Small, strong, smart
The handy and compact design makes this lightweight the ideal companion for mobile analysis. Its simple operation allows measurements within seconds. Besides the measurement accuracy, simplicity and user friendliness are key features of all MACHEREY‑NAGEL devices. The interaction of context-sensitive icons and only four
buttons guarantees a smart, clear and language-independent operation.
Fast and reliable results
The centerpiece of the PF‑3 is its high-quality optic with the specially selected LEDs and corresponding interference filters. The unique “open slot” technology allows measurements without cuvette slot cover, thus emphasizing the high technical standard of the instrument. This yields into a simple and quick operation for the user, together with highly reliable results. MACHEREY‑NAGEL provides free PC software, for an even more comfortable operation. The software makes data management convenient, simple and efficient. Additionally it guarantees a forgery-proof data management.
Be prepared
The variable power supply is of particular convenience for the user and enables reliable measurements in all situations. Besides batteries and an accu-pack, the device can also be powered directly via an USB cable or a power adaptor.
