The Cubis® II from Sartorius is a completely configurable, high performance portfolio of balance hardware and software that will align with your unique demands and compliance requirements to maximize operational efficiency and experimental outcomes. All modules of the Cubis® II balance were designed for an intuitive operation, further aided by intelligent diagnostic systems. These design elements guarantee a higher degree of repeatability for different workflows while lowering the probability of human error during measurement.

The modular weighing system Cubis® II can be individually configured from different components. The combinability of the display unit, weighing module, draft shield, software packages for various applications and functions and a comprehensive range of accessories allows the individual adaptation of the Cubis® II balance to all weighing tasks.

These Cubis® II Ultramicro Balances come with the following components:

• Advanced user interface (MCA):

Large 7“ colour touch display including touch, scroll, swipe functionality with factory installed essential weighing applications and diverse QApp Packages for optional software extension

• 2.7S weighing module:

Capacity/Readability 2.1g/0.1ug. Motion sensor for touch free opening/closing of the draft shield, optimal view, optimal handling even for the smallest amounts of samples, automated motorized leveling, high quality titanium weighing pan and draft shield base plate with non-magnetic features.

• Choice of draft shield:

Gives optimal protection against external influences guarantees highest weighing accuracy. Conductive coating on the glass panels reduces the influence of external electrostatic charges. High glass transparency panels guarantee outstanding visibility of the weighing pan and the surrounding working area. The weighing pan and draft shield base plate are made of Titanium and is highly resistant against corrosion, even with aggressive substances. LED light in allows fatigue-free work, even with the smallest sample sizes.

- Draft Shield M (MCA2.7SM-S00), an automatic, motorized, round, 100% glass draft shield draft shield with learning capability and integrated motion sensor.

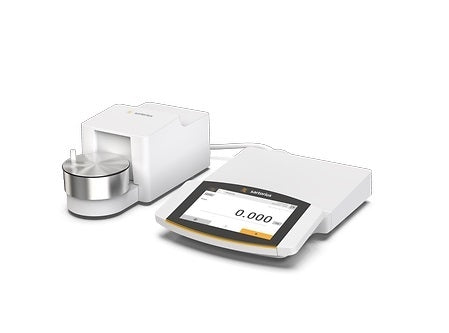

- Draft Shield F (MCA2.7SF-S00-this model) manual stainless steel draft shield especially designed for highly-accurate weighing of filters with diameters of up to 50 mm.

• Other configurations:

- Essential user interface (MCE)

- All balances are S00 approval (standard version worldwide), other versions are available
