- Home
- HPLC Columns

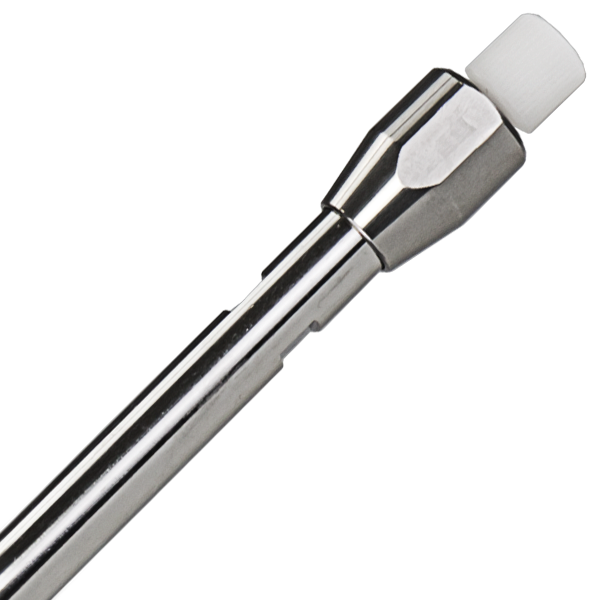

- EC HPLC column (analytical), NUCLEOSIL 100-5 NH2-RP, 5 µm, 250x3 mm
Besides cyano modifications, amino modifications belong to the most frequently used polar silica phases. Amino phases can be run in the RP mode using aqueous-organic eluent mixtures as well as in the NP mode, e.g., with hexane as mobile phase. Also anion exchange chromatography of anions and organic acids using common buffers (e.g., acetate or phosphate) in conjunction with organic modifiers (e.g., acetonitrile) is possible. Separation mechanism based on polar interactions, hydrophobic interactions and weak ion exchange interactions. These HPLC columns are packed with polar aminopropyl modification, based on the original NUCLEOSIL silica gel. It is one of the first spherical silicas for HPLC and was originally developed by MACHEREY-NAGEL in 1974. It is exclusively manufactured in Germany and is still one of the most used HPLC silicas in quality control around the globe.
-
Recommended application(s)
HPLC
Particle shape
Spherical
Endcapped
No
pH stability
2.0–8.0
Mode
Reversed phase (RP)
Pore size
100 Å
Particle size
5 µm
Surface chemistry
Aminopropyl (NH2) modification
Scope of delivery
1x analytical HPLC column, instruction leaflet, certificate of analysis
Temperature stability (max)
60 °C
Tmax (phosphate buffer)
40 °C
Method
HPLC, analytical
Hardware
Stainless steel
Type
EC HPLC column (analytical)
Eluent in HPLC column
Acetonitrile – water
Column inner diameter
3 mm
Column length
250 mm
Column volume
1.75 mL
Mode
Multi-mode (RP and NP)
Recommended application(s)
Polar compounds under RP conditions (sugars, DNA bases)
Recommended application(s)
Hydrocarbons under NP conditions
USP listing
L8
Brand
NUCLEOSIL
Pressure stability (max)
400 bar
Pore volume
1 mL/g
Specific surface according to BET
350 m²/g
Base material
NUCLEOSIL - the standard silica
Carbon content
3.5 %
Phase
NUCLEOSIL 100-5 NH2-RP
Particle type
Fully porous particle (FPP)
