- Home
- HPLC Columns

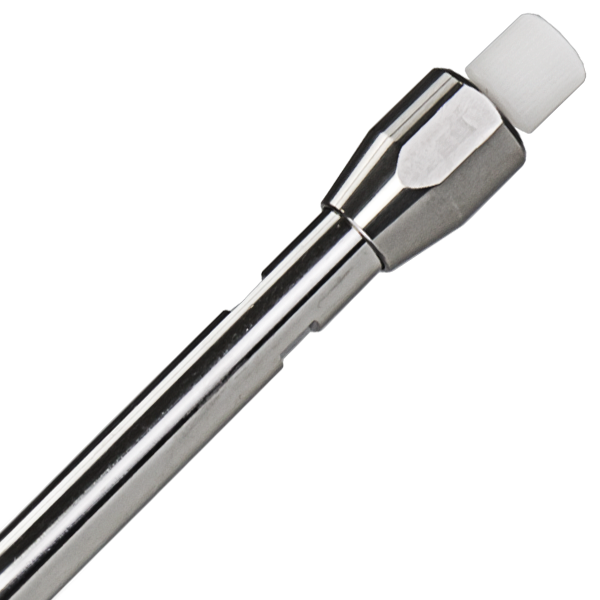

- EC HPLC column (analytical), NUCLEOSIL 100-5 SA, 5 µm, 125x4.6 mm
Strongly acidic cation exchanger (SCX) with capacity ~ 1 meq/g. Separation mechanism based on strong ion exchange interactions. Based on the original NUCLEOSIL silica gel. It is one of the first spherical silicas for HPLC and was originally developed by MACHEREY-NAGEL in 1974. It is exclusively manufactured in Germany and is still one of the most used HPLC silicas in quality control around the globe.
-
Recommended application(s)
HPLC
Particle type
Fully porous particles (FPP)
Particle shape
Spherical
Endcapped
No
pH stability
2.0–8.0
Mode
Ion exchange (IEX)
Pore size
100 Å
Particle size
5 µm
Scope of delivery
1x analytical HPLC column, instruction leaflet, certificate of analysis
Temperature stability (max)
60 °C
Tmax (phosphate buffer)
40 °C
Method
HPLC, analytical
Hardware
Stainless steel
Type
EC HPLC column (analytical)
Column inner diameter
4.6 mm
Column length
125 mm
Column volume
2.06 mL
Brand
NUCLEOSIL
Pressure stability (max)
400 bar
Pore volume
1 mL/g
Specific surface according to BET
350 m²/g
Base material
NUCLEOSIL - the standard silica
Carbon content
6.5 %
Recommended application(s)
Cation exchange
Recommended application(s)
Transition metals
Recommended application(s)
Iron(III)
Recommended application(s)
Iron(II)
Recommended application(s)
Copper(II)
Recommended application(s)
Lead(II)
Recommended application(s)
Zinc(II)
Recommended application(s)
Nickel(II)
Recommended application(s)
Cobalt(II)
Recommended application(s)
Cadmium(II)
Recommended application(s)
Manganese(II)
Recommended application(s)
Organotin compounds
USP listing
L9
Surface chemistry
Sulfonic acid (strong acidic cation exchanger - SCX) modification
Eluent in HPLC column
0.15 mol/L (NH₄)₂HPO₄ (diammonium hydrogen phosphate), pH 5
Phase
NUCLEOSIL 100-5 SA
