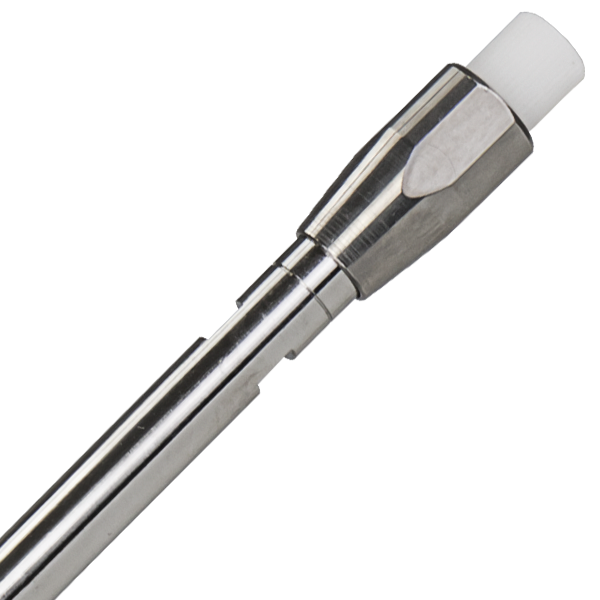

- EC HPLC column (analytical), NUCLEODUR 100-5 CN, 5 µm, 125x4.6 mm
The endcapped cyanopropyl phase is based on high purity NUCLEODUR silica gel. This HPLC phase is able to generate a clearly recognizable different retention behavior compared to purely alkyl-functionalized surface modifications. The polarity can be classified as intermediate based on multiple retention mechanisms such as dipole-dipole, π-π, and also hydrophobic interactions. Therefore, this phase shows a distinct selectivity for polar organic compounds as well as for molecules containing π electron systems (e.g., analytes with double bonds). Cyanopropyl HPLC columns can be run in the RP mode using aqueous-organic eluent mixtures as well as in the NP mode, e.g., with hexane as mobile phase.
-
Recommended application(s)
HPLC
Brand
NUCLEODUR
Pore size
110 Å
Mode
Normal phase (NP)
Specific surface according to BET
340 m²/g
Base material
NUCLEODUR - high purity silica
Particle type
Fully porous particles (FPP)
Particle shape
Spherical
Endcapped
Yes
Particle size
5 µm
Mode
Multi-mode (NP and RP)
Surface chemistry
Cyano, nitrile (CN) modification
Recommended application(s)
Steroids
Recommended application(s)
Organic acids
Scope of delivery
1x analytical HPLC column, instruction leaflet, certificate of analysis
Temperature stability (max)
60 °C
Tmax (phosphate buffer)
40 °C
Pressure stability (max)
600 bar
Method
HPLC, analytical
Hardware
Stainless steel
Type
EC HPLC column (analytical)
Pore volume
0.9 mL/g
Column inner diameter
4.6 mm
Column length
125 mm
Column volume
2.06 mL
Recommended application(s)
Normal phase
Recommended application(s)
NP applications
Recommended application(s)
Tricyclic antidepressants
pH stability
1.0–8.0
USP listing
L10
Carbon content
7.0 %
Phase
NUCLEODUR 100-5 CN
Eluent in HPLC column
n-heptane
