- Home
- HPLC Columns

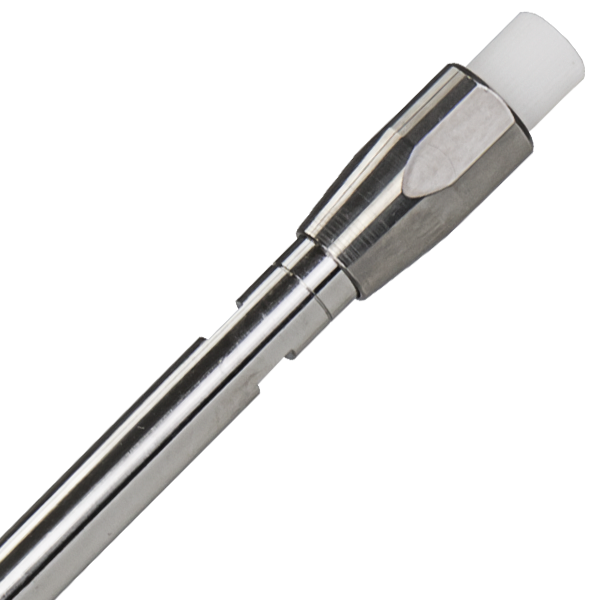

- EC HPLC column (analytical), NUCLEODUR 100-5 NH2-RP, 5 µm, 125x4 mm
This HPLC column is packed with polar aminopropyl modification, based on high purity NUCLEODUR silica gel. This HPLC phase is able to generate a clearly recognizable different retention behavior compared to purely alkyl-functionalized surface modifications. Besides cyano modifications, amino modifications belong to the most frequently used polar silica phases. Amino phases can be run in the RP mode using aqueous-organic eluent mixtures as well as in the NP mode, e.g., with hexane as mobile phase. Also anion exchange chromatography of anions and organic acids using common buffers (e.g., acetate or phosphate) in conjunction with organic modifiers (e.g., acetonitrile) is possible. Separation mechanism based on polar interactions, hydrophobic interactions and weak ion exchange interactions.
-
Recommended application(s)
HPLC
Brand
NUCLEODUR
Pore size
110 Å
Specific surface according to BET
340 m²/g
Base material
NUCLEODUR - high purity silica
Particle type
Fully porous particles (FPP)
Particle shape
Spherical
Endcapped
No
pH stability
2.0–8.0
Mode
Reversed phase (RP)
Particle size
5 µm
Surface chemistry
Aminopropyl (NH2) modification
Scope of delivery
1x analytical HPLC column, instruction leaflet, certificate of analysis
Temperature stability (max)
60 °C
Tmax (phosphate buffer)
40 °C
Pressure stability (max)
600 bar
Method
HPLC, analytical
Hardware
Stainless steel
Type
EC HPLC column (analytical)
Pore volume
0.9 mL/g
Eluent in HPLC column
Acetonitrile – water
Column inner diameter
4 mm
Column length
125 mm
Column volume
1.56 mL
Carbon content
2.5 %
Mode
Multi-mode (RP and NP)
Recommended application(s)
Polar compounds under RP conditions (sugars, DNA bases)
Recommended application(s)
Hydrocarbons under NP conditions
USP listing
L8
Phase
NUCLEODUR 100-5 NH2-RP
